Custom Solutions For Track Maintance

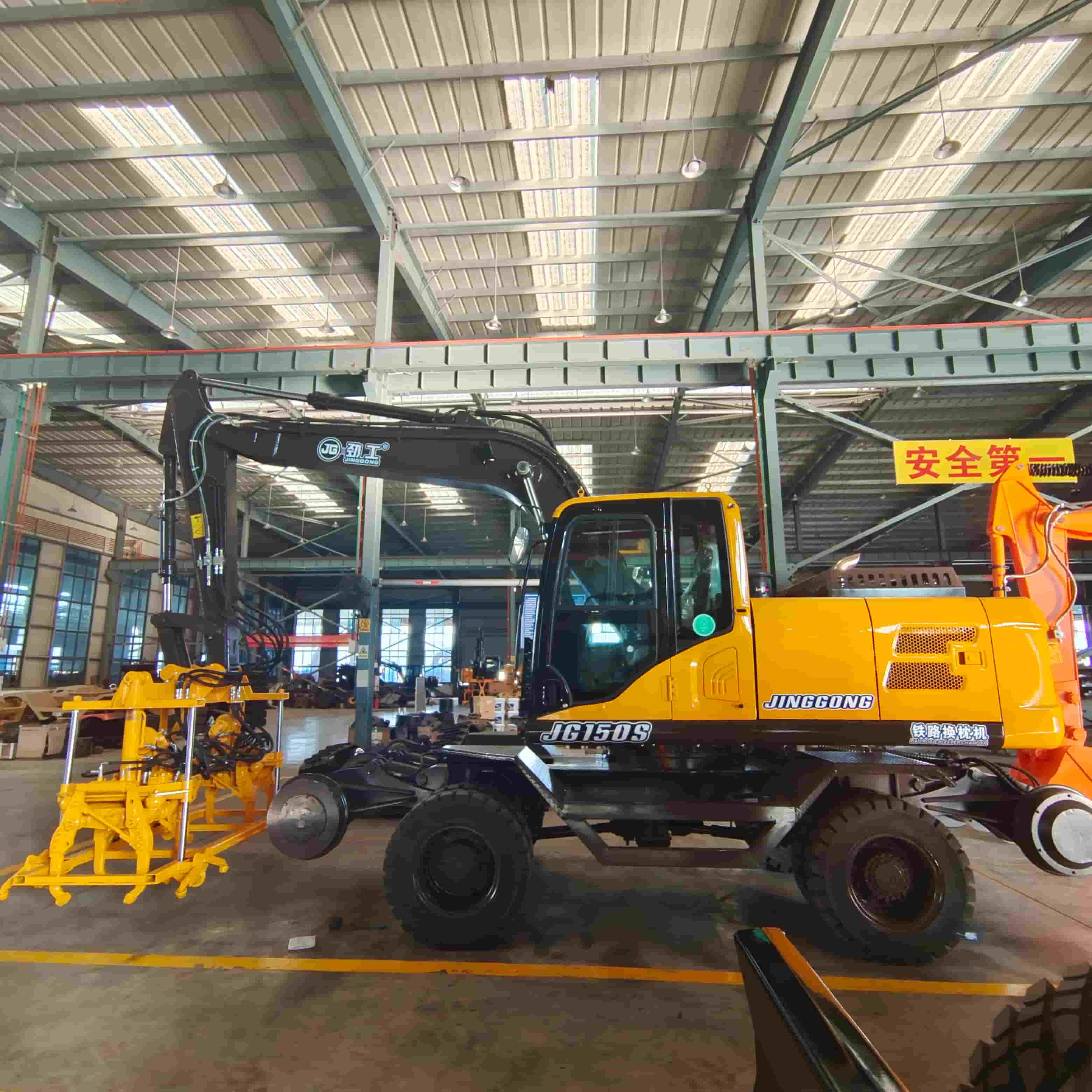

JG150S is a high-performance multi-functional construction machine designed for modern railway track construction and maintenance. It integrates the functions of stamping, digging, track positioning and so on. It is suitable for laying, maintenance and repair of high-speed railway, general railway, subway and special track. The equipment adopts modular double-head design, carries intelligent control system, is compatible with all-weather complex working conditions, and is the core equipment to improve the efficiency of railway maintenance.
Item No :
JG150SOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :

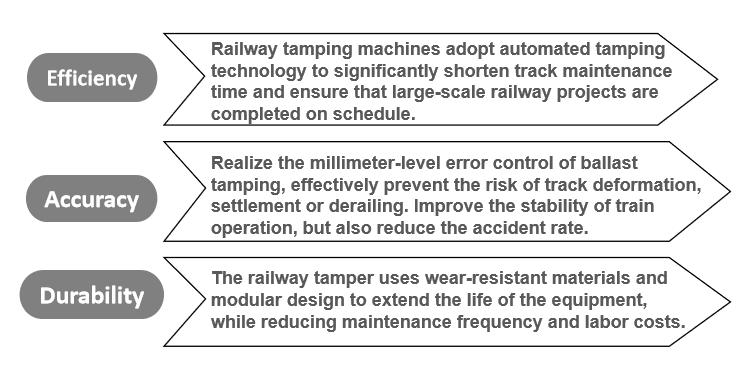

15000kgEfficiency，Railway tamping machines adopt automated tamping technology to significantly shorten track maintenance time and ensure that large-scale railway projects are completed on schedule. Accuracy，Realize the millimeter-level error control of ballast tamping, effectively prevent the risk of track deformation, settlement or derailing. Improve the stability of train operation, but also reduce the accident rate. Durability，The railway tamper uses wear-resistant materials and modular design to extend the life of the equipment, while reducing maintenance frequency and labor costs.
|

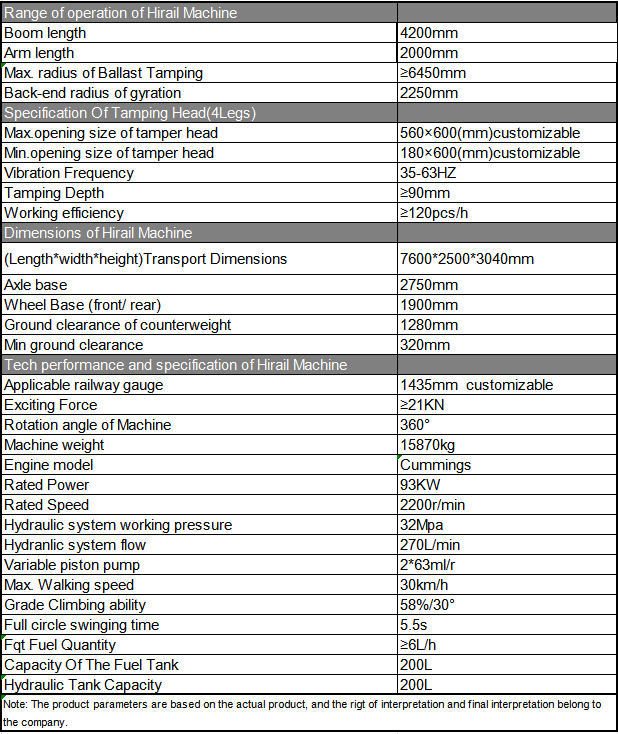

Range of operation of Hirail Machine |
|
|
Boom length |
4200mm |
|
Arm length |
2000mm |
|
Max. radius of Ballast Tamping |
≥6450mm |
|
Back-end radius of gyration |
2250mm |
|
Specification Of Tamping Head(4Legs) |
|
|
Max.opening size of tamper head |
560×600(mm) customizable |
|
Min.opening size of tamper head |
180×600(mm) customizable |
|
Vibration Frequency |
35-63HZ |
|
Tamping Depth |
≥90mm |
|
Working efficiency |
≥120pcs/h |
|
Dimensions of Hirail Machine |
|
|
(Length*width*height)Transport Dimensions |
7600*2500*3040mm |
|
Axle base |
2750mm |
|
Wheel Base (front/ rear) |
1900mm |
|
Ground clearance of counterweight |
1280mm |
|
Min ground clearance |
320mm |
|
Tech performance and specification of Hirail Machine |
|
|
Applicable railway gauge |
1435mmcustomizable |
|
Exciting Force |
≥21KN |
|
Rotation angle of Machine |
360° |
|
Machine weight |
15870kg |
|
Engine model |
Cummings |
|
Rated Power |
93KW |
|
Rated Speed |
2200r/min |
|
Hydraulic system working pressure |
32Mpa |
|
Hydranlic system flow |
270L/min |
|
Variable piston pump |
2*63ml/r |
|
Max. Walking speed |
30km/h |
|
Grade Climbing ability |
58%/30° |
|
Full circle swinging time |
5.5s |
|
Fqt Fuel Quantity |
≥6L/h |
|
Capacity Of The Fuel Tank |
200L |
|
Hydraulic Tank Capacity |
200L |
|
Note: The product parameters are based on the actual product, and the right of interpretation and final interpretation belong to the company. |
|
Product Overview

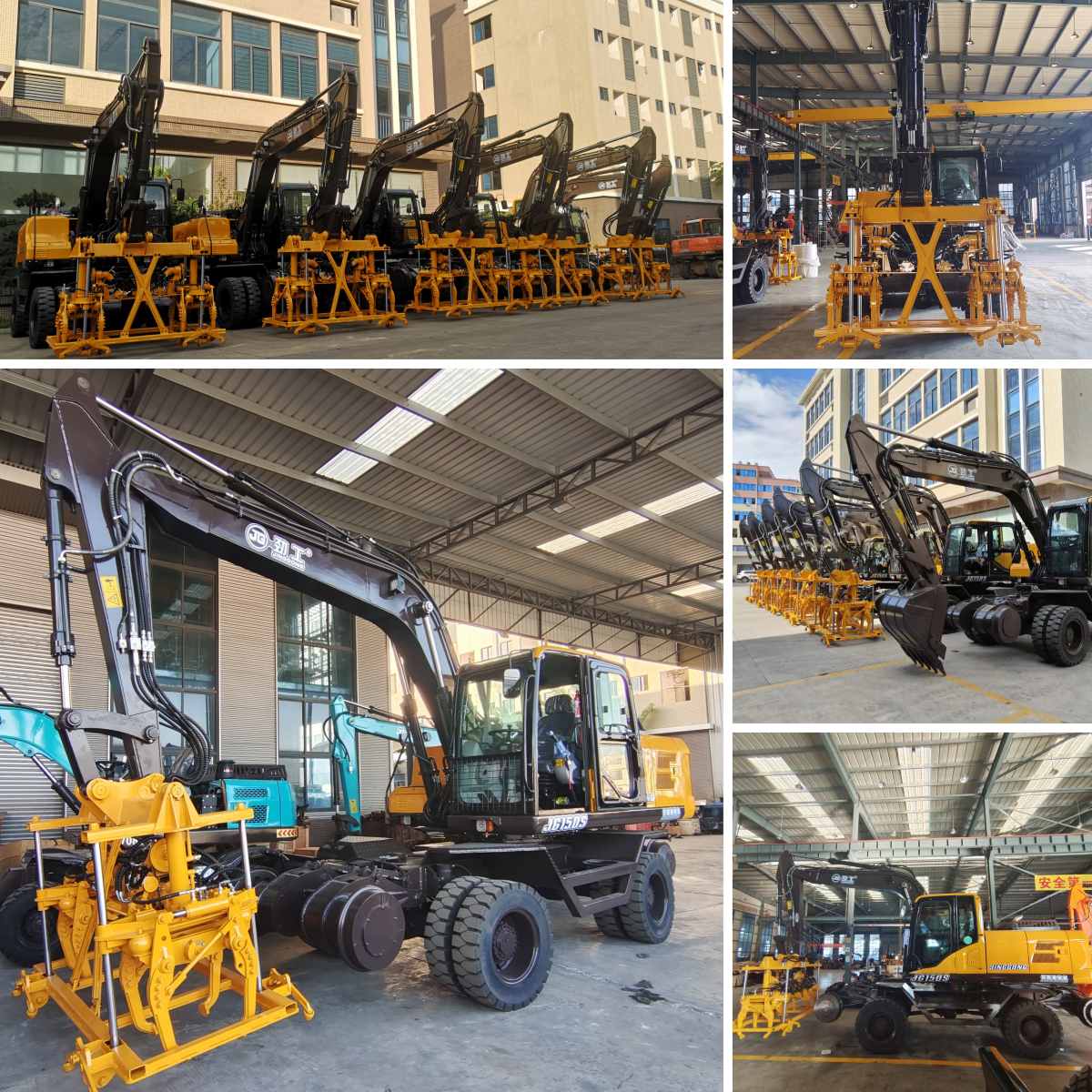

15ton Double Head Railway Tamping Machine Railway Wheeled Excavator
JG150S 15 ton double-headed railway excavator is an intelligent road maintenance equipment integrating track stamping and earth excavation. Through the collaborative operation of the front high-frequency stamping head and the rear multifunctional excavator arm, its rubber tire + track wheel dual mode chassis support, ensuring the stability of frozen soil, subway and other complex scenes. The maintenance efficiency is increased by 50% and the labor cost is saved by 45%.
Product Advantages
Technical Specifications

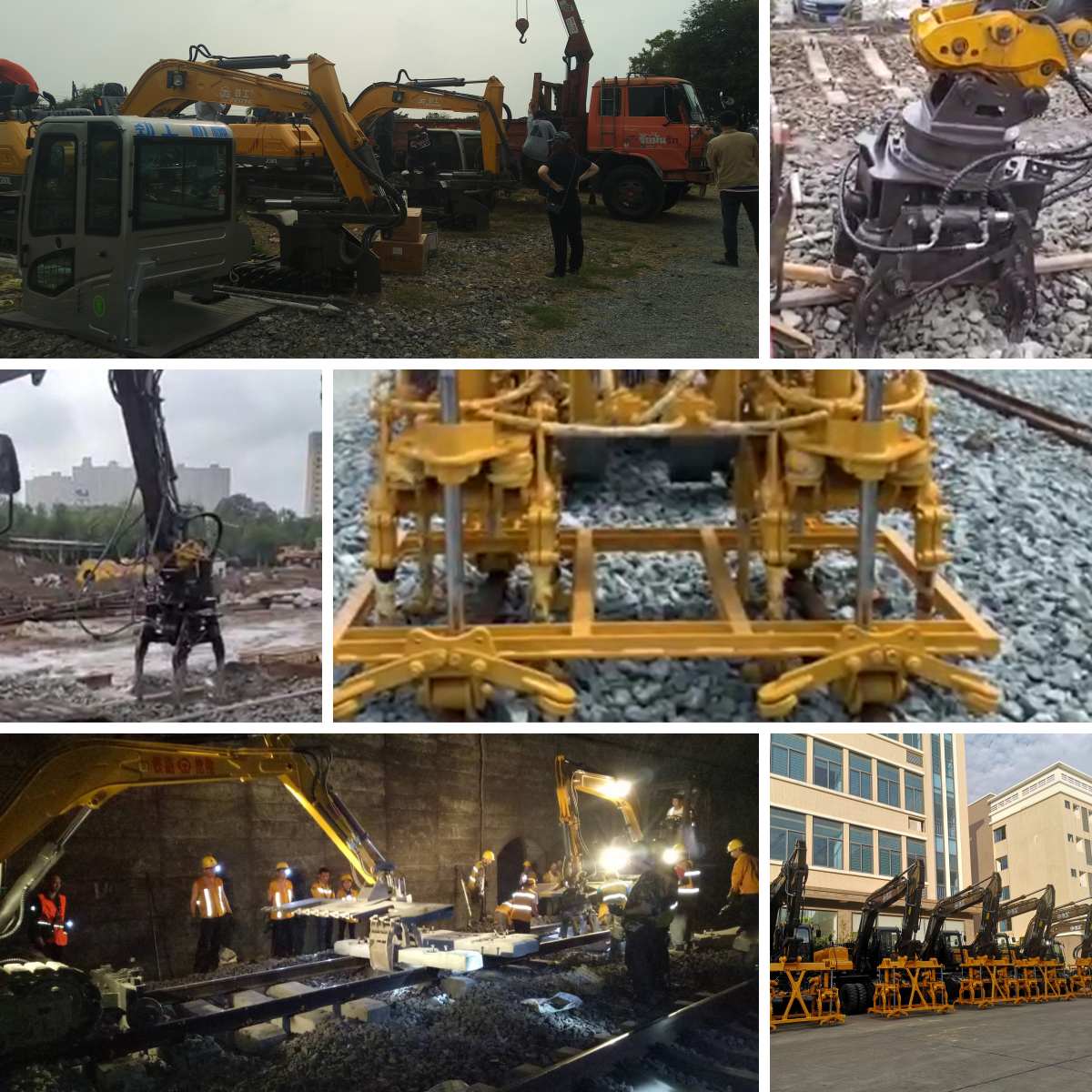

Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.

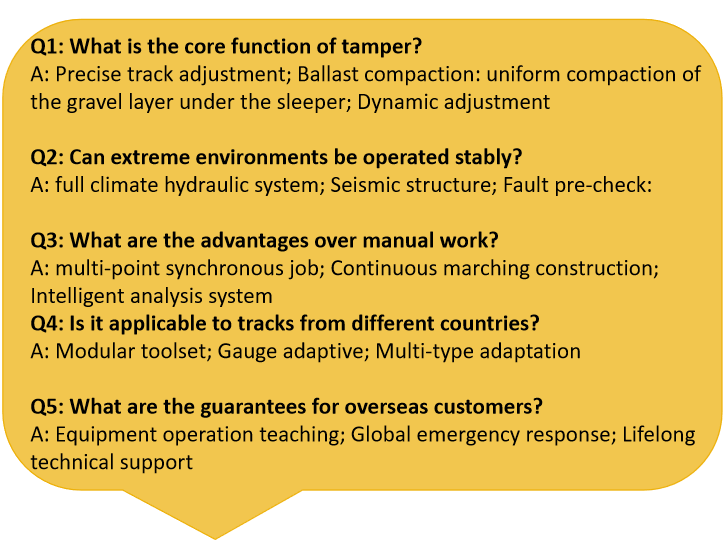

Q&A
