Custom Solutions For Track Maintance

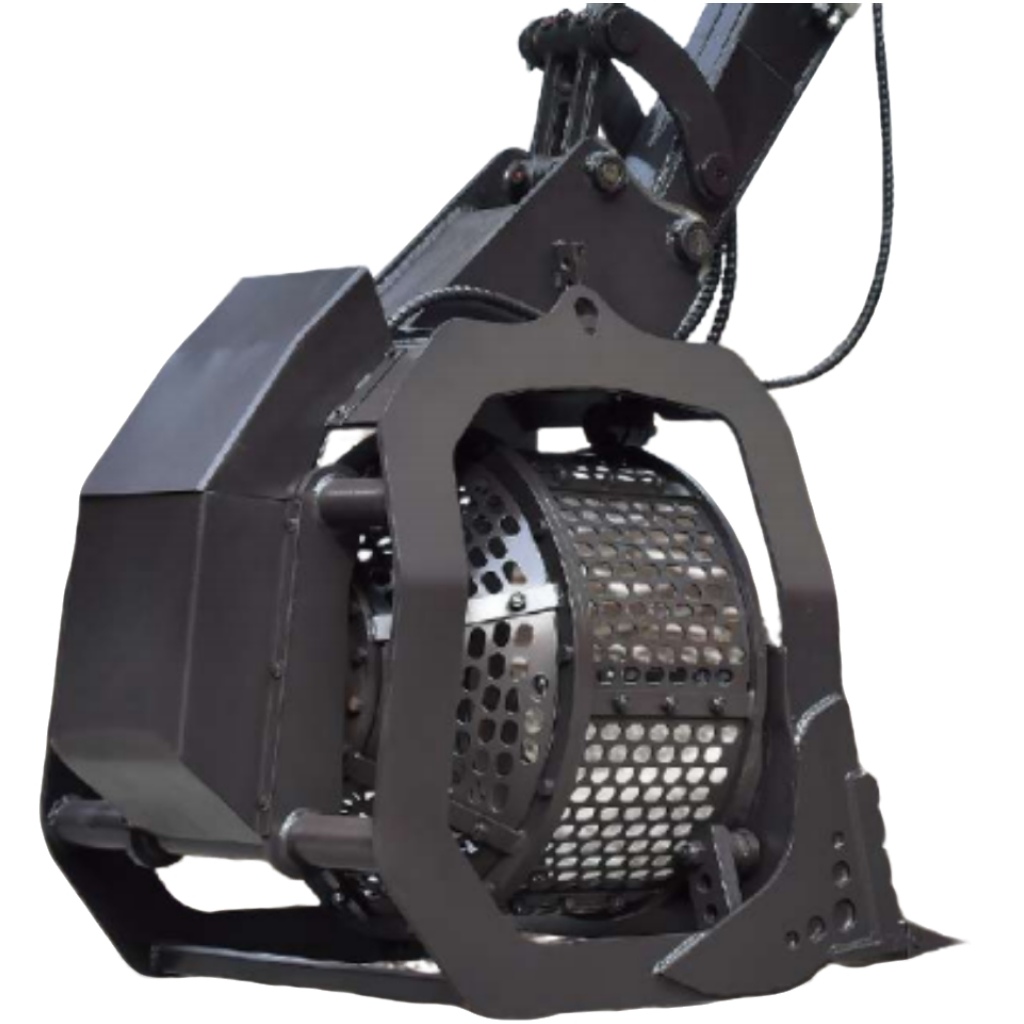

JG Screening Bucket is Suitable For Railway Excavators
The Screening Bucket is a revolutionary accessory specifically designed for the precise material handling requirements in railway construction and maintenance. It is seamlessly integrated into the track-specific excavators. In narrow track areas or on the roadbed operation space, with its efficient vibrating screening mechanism, it can directly perform on-site instantaneous classification processing of the excavated soil, crushed stones, or recycled ballast - separating out the clean aggregates that meet the specifications for direct backfill and reuse, while simultaneously removing oversized stones, debris, and fine particle waste, significantly optimizing the material management process.
Item No :
JG-LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
blackShipping Port :
XiamenLead Time :
15-45daysWeight :
700kg
|

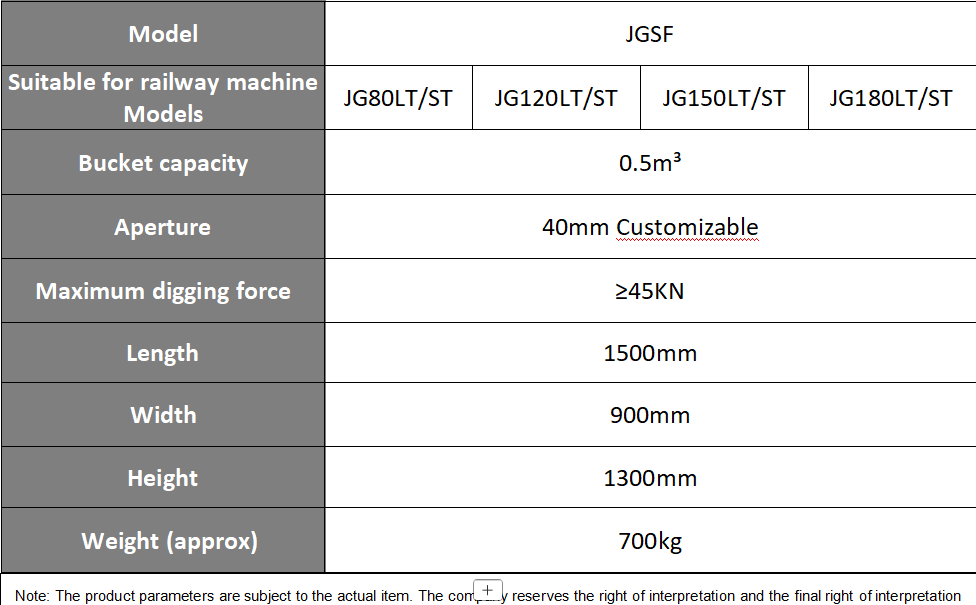

Model |
JGSF |
|||
|
Suitable for railway machine Models |
JG80LT/ST |
JG120LT/ST |
JG150LT/ST |
JG180LT/ST |
|
Bucket capacity |
0.5m³ |
|||
|
Aperture |
40mm Customizable |
|||
|
Maximum digging force |
≥45KN |
|||
|
Length |
1500mm |
|||
|
Width |
900mm |
|||
|
Height |
1300mm |
|||
|
Weight (approx) |
700kg |
|||
Product Overview
JG Screening Bucket is Suitable For Railway Excavators

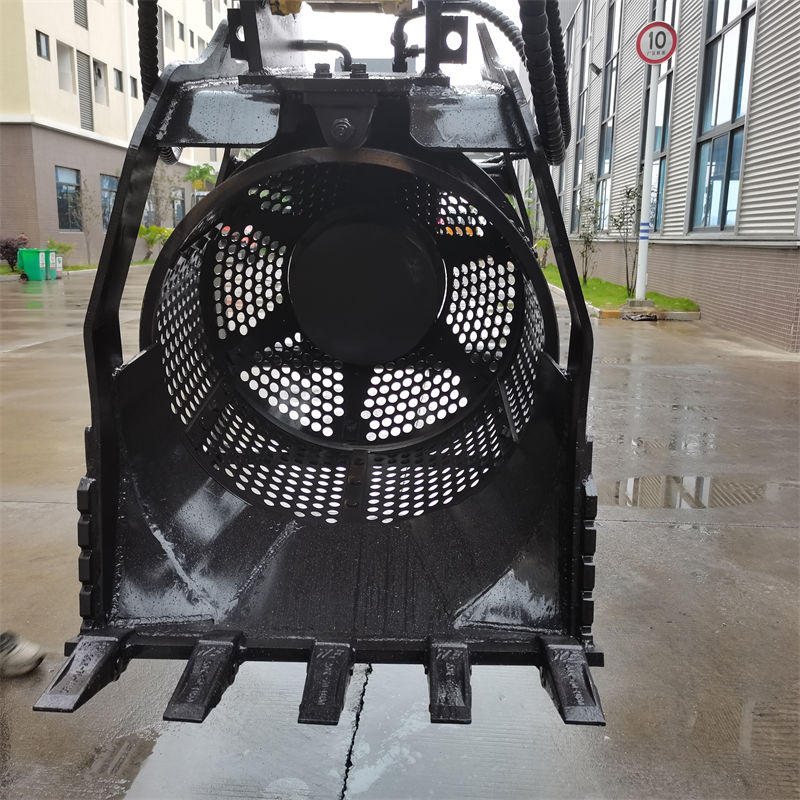

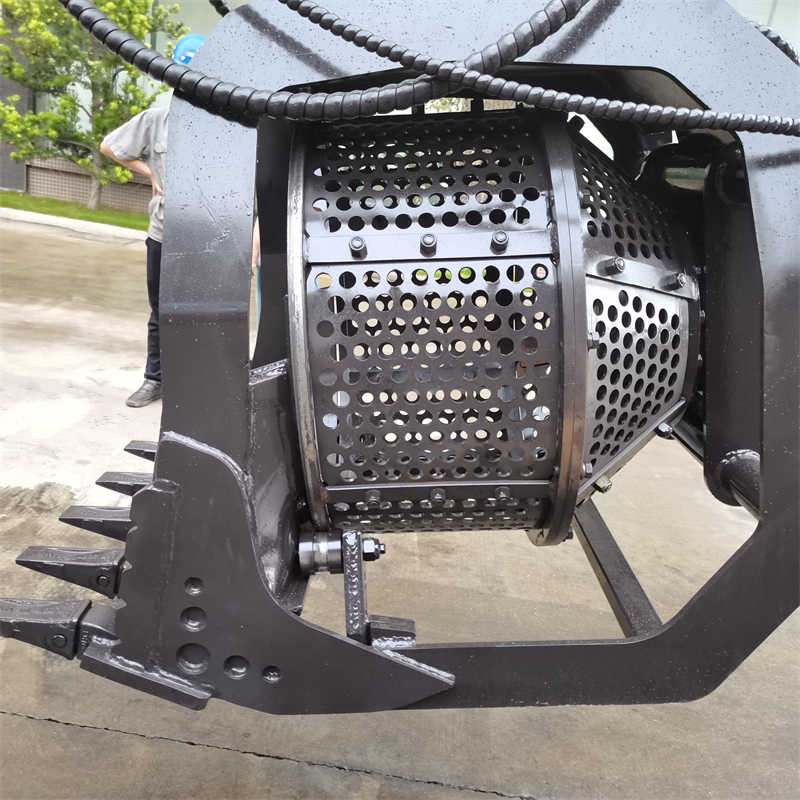

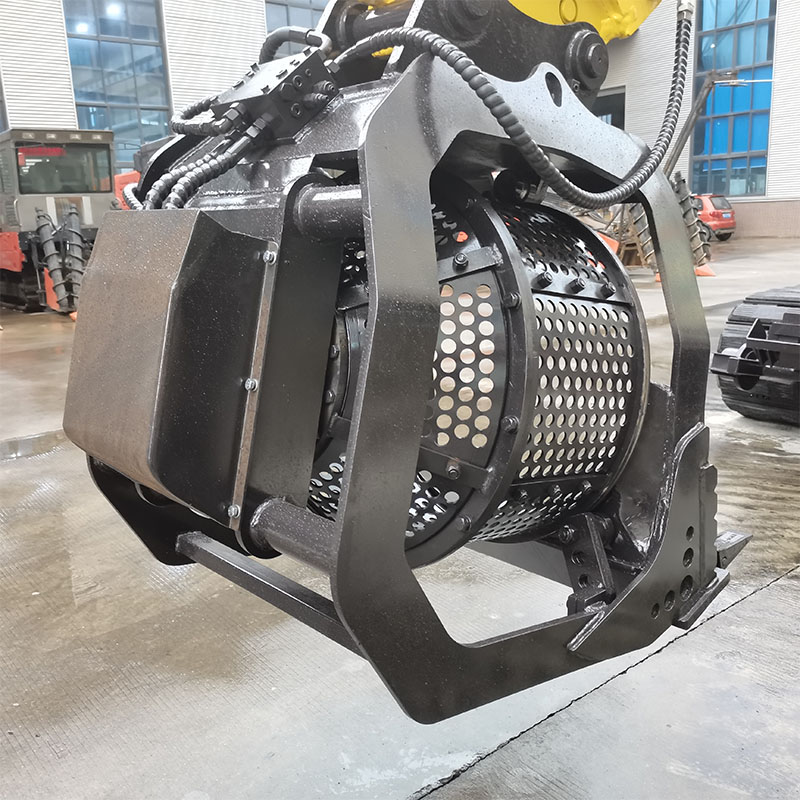

The bucket body is made of impact-resistant and wear-resistant high-strength steel, and is equipped with an optimized screen structure and amplitude adjustment function, ensuring long-term stable and efficient screening performance in the tough and abrasive material environment specific to railways. Its compact design maximally retains the flexibility and maneuverability of the excavator, and is particularly suitable for conducting detailed operations such as track boundary maintenance, drainage ditch cleaning, and roadbed slope repair within the track limits. This screening bucket significantly reduces the need for secondary material handling, improves resource utilization, lowers engineering costs and working hours, and is a key equipment for achieving green, efficient and lean railway construction.
Technical Specifications
Customizable
In the complex scene of railway construction and maintenance, standardized assistive devices are often difficult to meet diverse needs. We offer full-process customized accessory solutions, from breaking hammers and hydraulic rammers to rail tie installers. Each product can be redesigned according to your equipment model, operating environment and special functional requirements.
Application Scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.

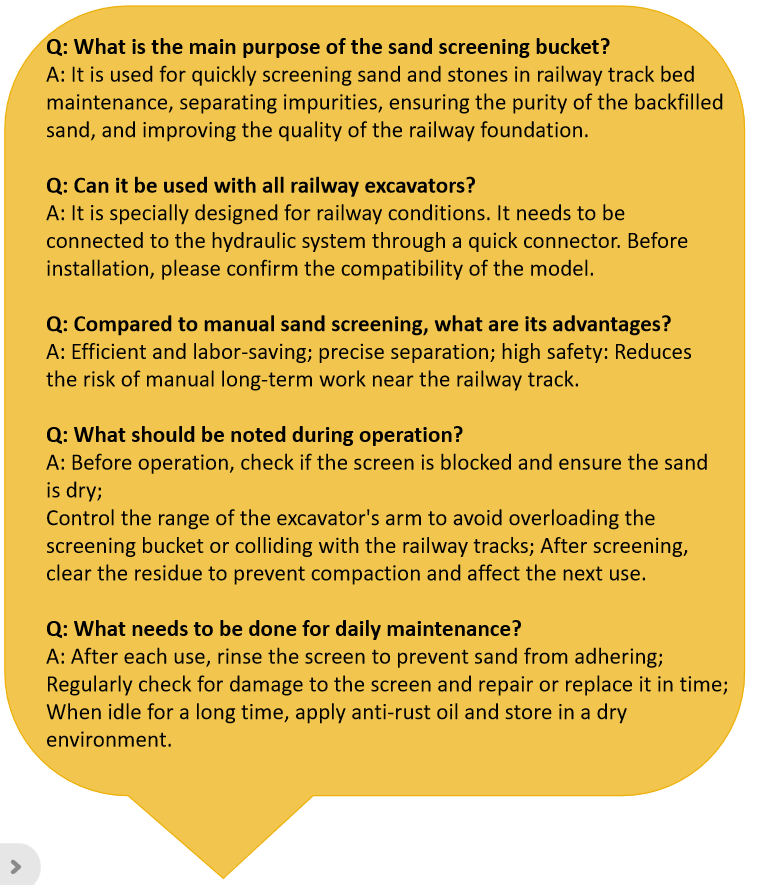

Q&A
The Screening Bucket is a revolutionary accessory specifically designed for the precise material handling requirements in railway construction and maintenance. It is seamlessly integrated into the track-specific excavators. In narrow track areas or on the roadbed operation space, with its efficient vibrating screening mechanism, it can directly perform on-site instantaneous classification processing of the excavated soil, crushed stones, or recycled ballast - separating out the clean aggregates that meet the specifications for direct backfill and reuse, while simultaneously removing oversized stones, debris, and fine particle waste, significantly optimizing the material management process.
Read More
This screening bucket fits all excavators to screen sand, stone and construction waste via rotating roller. Made of thickened steel, interchangeable perforated mesh resists wear. Hydraulic forward & reverse rotation prevents blockage. It integrates digging and screening functions, easy to mount as a replacement bucket. Widely used in river dredging, ore sorting and demolition waste separation, cutting extra machine costs with flexible operation.
