Custom Solutions For Track Maintance
The JG100LT ballast screening bucket for railway excavators represents a revolutionary leap in track maintenance technology. Designed specifically for 10-ton excavators, this equipment streamlines the critical process of ballast renewal without the need for manual labor or complex machinery. Its bucket-type configuration allows operators to efficiently sieve and separate contaminated ballast directly on-site, ensuring optimal track stability and drainage while minimizing disruption to railway operations. Ideal for busy rail networks, it enhances safety by reducing debris buildup and extends the lifespan of infrastructure through consistent, high-quality screening. This innovation transforms routine maintenance into a seamless, operator-friendly task, making it an indispensable asset for rail authorities and contractors worldwide.
Item No :
JG100LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :
10000kgThrough the integrated sieve bucket design, can quickly screen and separate the ballast, gravel and other materials, significantly improve the efficiency of track maintenance or laying, reduce downtime.Suitable for a variety of railway scenarios, such as track foundation handling, material recovery and cleaning operations, easy to handle narrow Spaces and complex terrain, ensuring that the machine is versatile.The automatic screening process reduces manual intervention, reduces labor intensity and maintenance costs, and extends the life of the equipment, bringing long-term economic benefits.
|

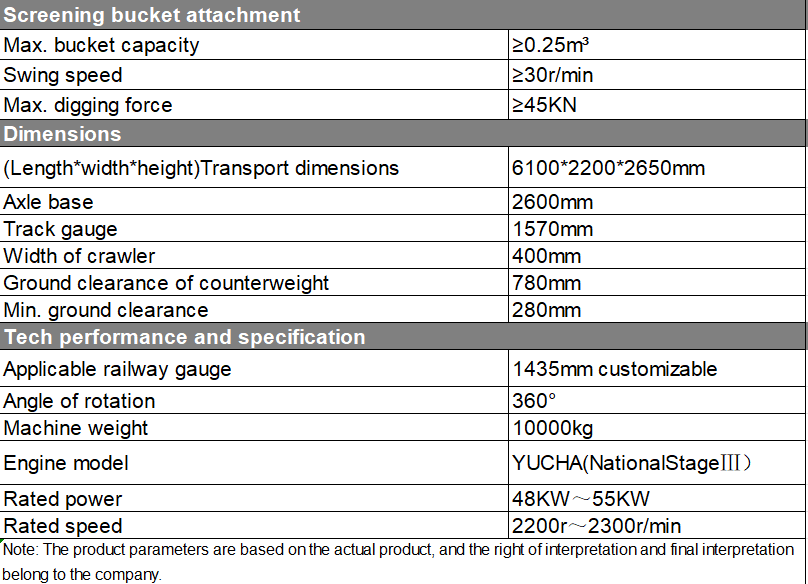

Screening bucket attachment |
|
|
Max. bucket capacity |
≥0.25m³ |
|
Swing speed |
≥30r/min |
|
Max. digging force |
≥45KN |
|
Dimensions |
|
|
(Length*width*height)Transport dimensions |
6100*2200*2650mm |
|
Axle base |
2600mm |
|
Track gauge |
1570mm |
|
Width of crawler |
400mm |
|
Ground clearance of counterweight |
780mm |
|
Min. ground clearance |
280mm |
|
Tech performance and specification |
|
|
Applicable railway gauge |
1435mm customizable |
|
Angle of rotation |
360° |
|
Machine weight |
10000kg |
|
Engine model |
YUCHA(NationalStageⅢ） |
|
Rated power |
48KW～55KW |
|
Rated speed |
2200r～2300r/min |
|
Note: The product parameters are based on the actual product, and the right of interpretation and final interpretation belong to the company. |
|
Product Overview

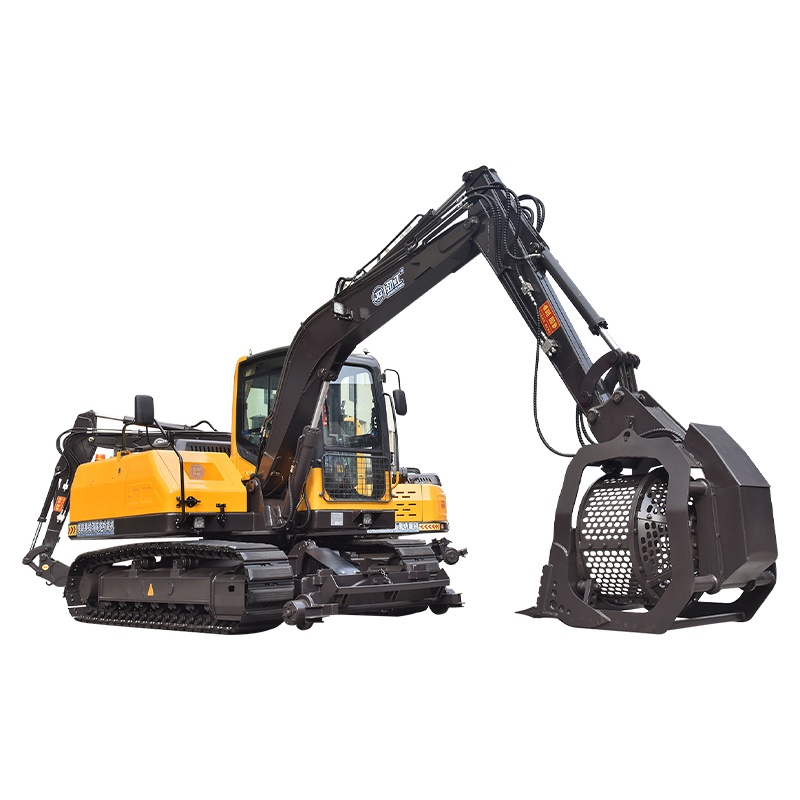

JG100LT 10-ton railway excavator ballast screening bucket-type equipment
The JG100LT ballast screening bucket for railway excavators represents a revolutionary leap in track maintenance technology. Designed specifically for 10-ton excavators, this equipment streamlines the critical process of ballast renewal without the need for manual labor or complex machinery. Its bucket-type configuration allows operators to efficiently sieve and separate contaminated ballast directly on-site, ensuring optimal track stability and drainage while minimizing disruption to railway operations. Ideal for busy rail networks, it enhances safety by reducing debris buildup and extends the lifespan of infrastructure through consistent, high-quality screening. This innovation transforms routine maintenance into a seamless, operator-friendly task, making it an indispensable asset for rail authorities and contractors worldwide.
Product Advantages
Technical Specifications
Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
