Custom Solutions For Track Maintance

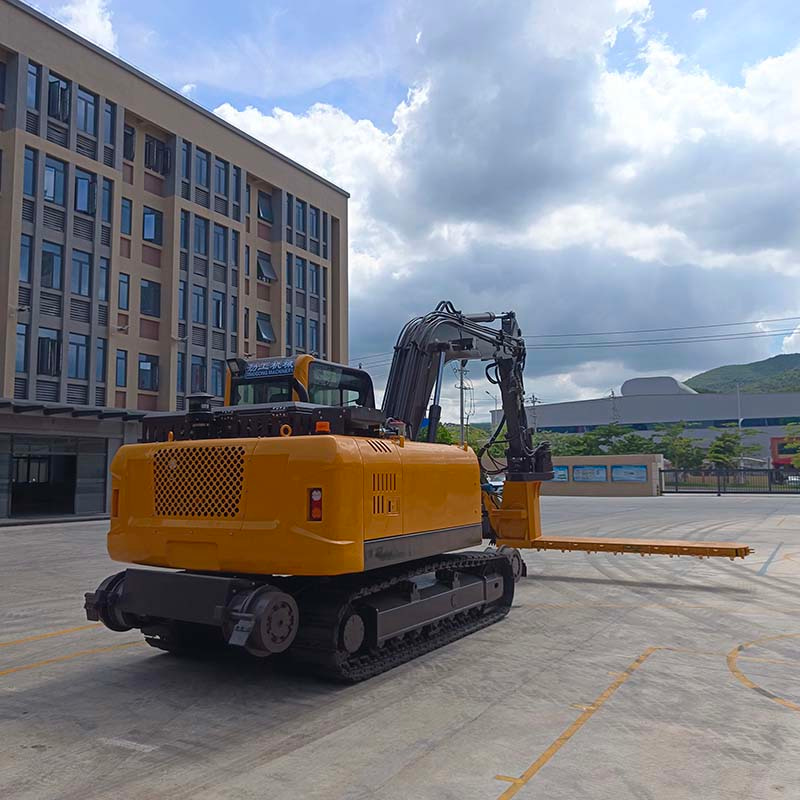

JG120LT 12-ton heavy-duty railway ballast cleaning excavator for track maintenance
A 12-ton all-around solution designed for high-intensity track maintenance, integrating ballast shaping, ballast under pillow and rail overhaul functions. Equipped with intelligent hydraulic system and scalable manipulator, a single machine can complete the tasks of traditional three devices.
Item No :
JG120LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :
12000kgEfficiency，Railway ballast machine through the powerful hydraulic system and vibration device, can compress a large number of ballast in a short time, greatly shorten the track maintenance cycle.Safety，The equipment can uniformly compress the ballast, ensure that the track foundation is tight and firm, and effectively prevent the track from sinking or deformation, so as to improve the smoothness and safety of train operation.precision，Modern railway balleting machines are well equipped to allow operators to monitor the compaction process in real time and make fine adjustments to ensure uniform force in each section.
|
ATTACHMENT FOR RAILWAY BALLAST UNDERCUTTER |
|
|
Rotation angle of ballast Undercutter |
360° |
|
Ballast chain line speed |
≥3.5m/s |
|
Effective working radiu |
≥1500mmAccessible on both sides |
|
Rotation speed (sprocket rotation) |
180r/min |
|
Completed ballast replacement distance per hour |
≥35m/h |
|
Dimensions of Ballast Undercutter |
3800*1100*1500mm |
|
Ballast Undercutter Total Weight |
1000Kg |
|
Dimensions |
|
|
(Length*width*height)Transport Dimensions |
1750*2230*2660mm |
|
Wheel base |
2600mm |
|
Track Gauge |
1570mm |
|
Width Of Crawler |
400mm |
|
Ground clearance of counterweight |
950mm |
|
Min ground clearance |
360mm |
|
Tech performance and specification |
|
|
Applicable railway gauge |
Customizable |
|
Angle of rotation |
360° |
|
Machine weight |
10500kg |
|
Engine model |
YUCHAI(Euro Ⅲ ) |
|
Rated Power |
EuroⅢ 140KW/EuroⅣ 129KW |
|
Rated Speed |
2000r/min |
|
Emergency system parameters |
|
|
Auxiliary power |
7.6KW / 300r/min |
|
Rated system pressure |
20MPa |
|
System flow |
20L/min |
|
Note: Product parameters shall prevail in kind, and the right of interpretation and final explanation belongs to the company. |
|
Product Overview
JG120LT 12ton Railway Ballast Machine Heavy Duty Hirail Excavator Ballast Regulator
JG120LT 12ton Railway Ballast Machine .All-weather durability, intelligent operation and maintenance system, adaptive gauge, compatible with narrow rail, standard rail and broad rail, safety compliance, CE, ISO certification, average daily operation volume of 8 km, helping global railway operators to reduce 60% of manual intervention and achieve optimal life cycle cost.
Product Advantages
Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
