Custom Solutions For Track Maintance

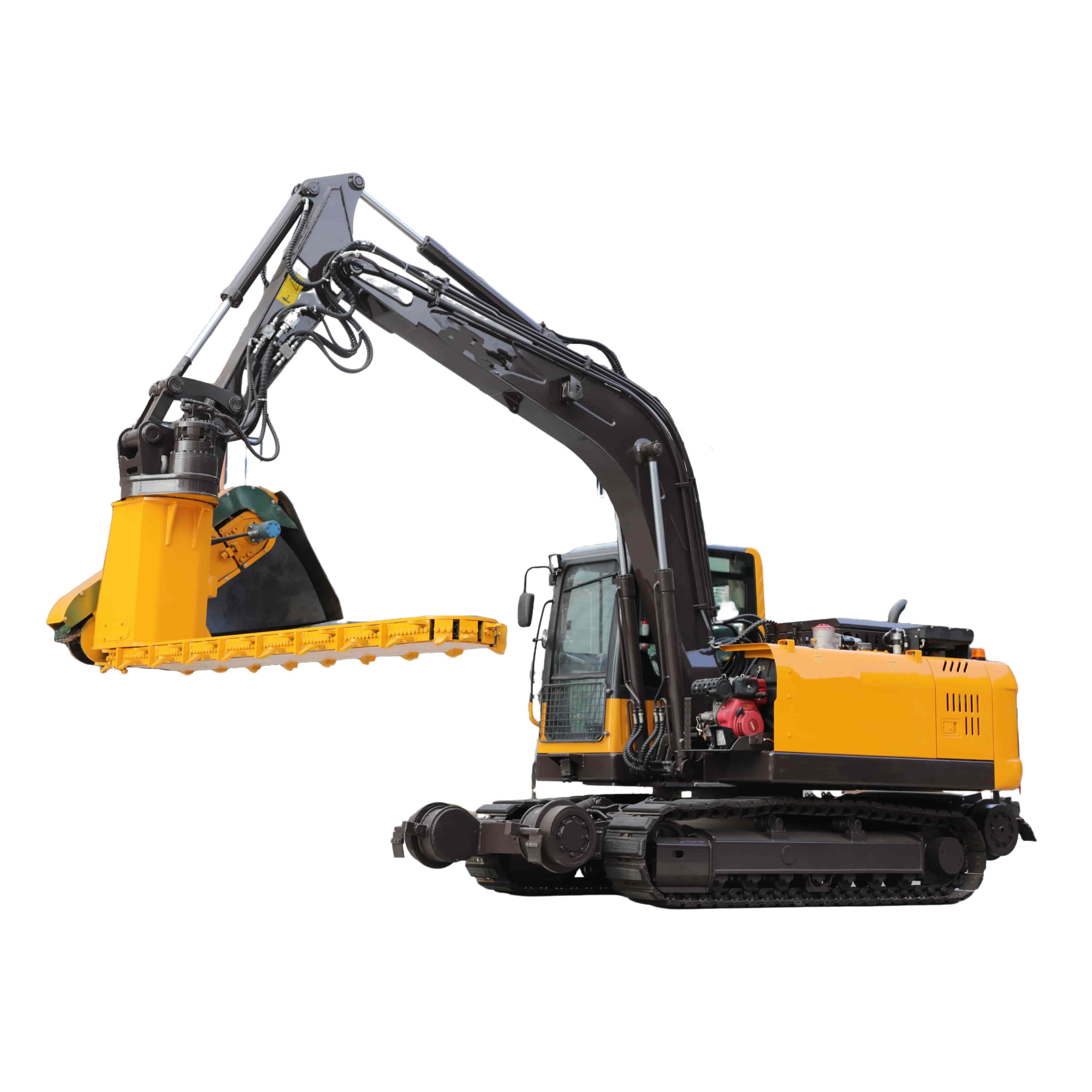

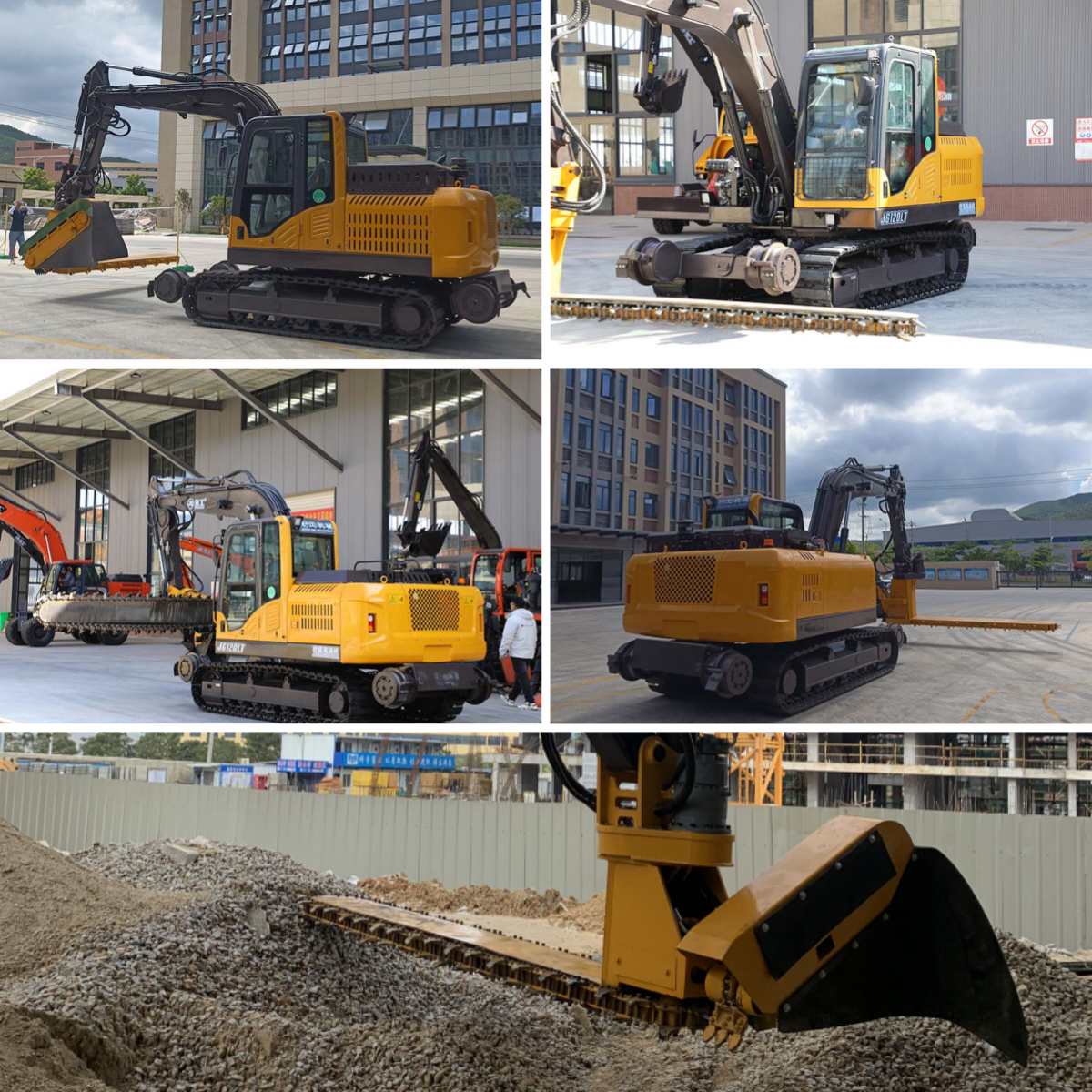

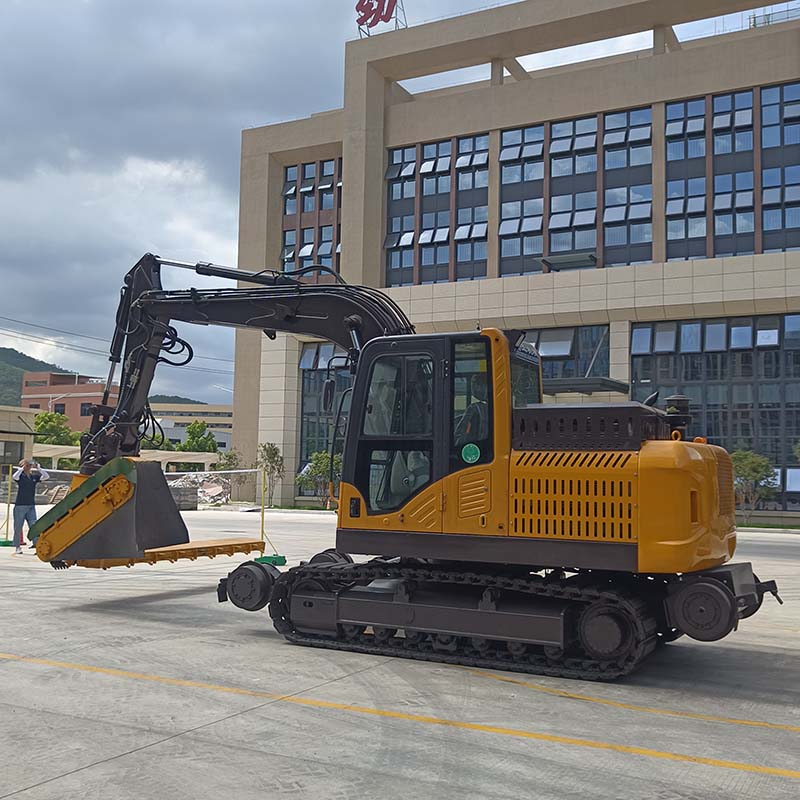

JG120LT 12ton Railway Ballast Machine Heavy Duty Hirail Excavator Ballast Regulator
A 12-ton all-around solution designed for high-intensity track maintenance, integrating ballast shaping, ballast under pillow and rail overhaul functions. Equipped with intelligent hydraulic system and scalable manipulator, a single machine can complete the tasks of traditional three devices.
Item No :
JG120LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :

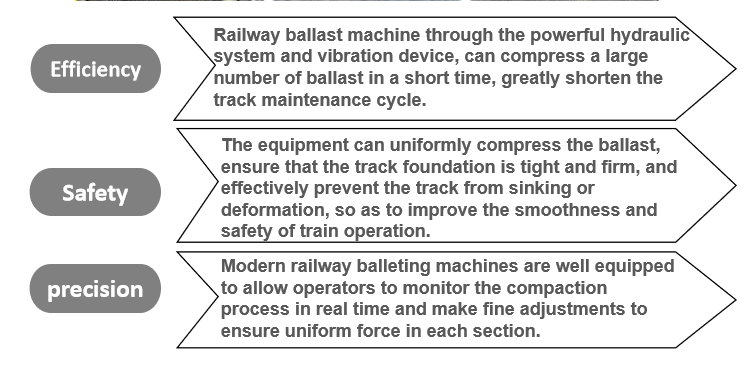

12000kgEfficiency，Railway ballast machine through the powerful hydraulic system and vibration device, can compress a large number of ballast in a short time, greatly shorten the track maintenance cycle.Safety，The equipment can uniformly compress the ballast, ensure that the track foundation is tight and firm, and effectively prevent the track from sinking or deformation, so as to improve the smoothness and safety of train operation.precision，Modern railway balleting machines are well equipped to allow operators to monitor the compaction process in real time and make fine adjustments to ensure uniform force in each section.
|

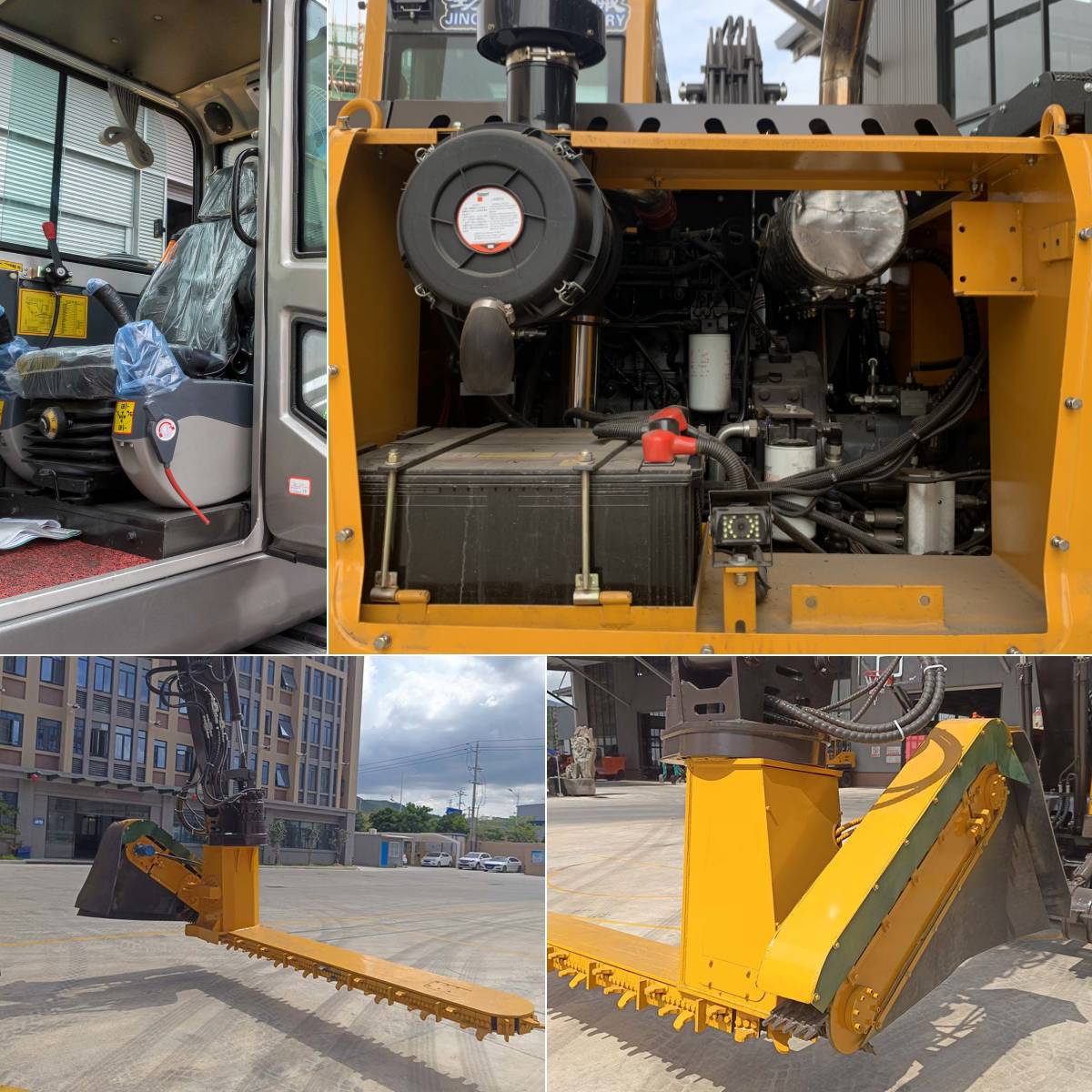

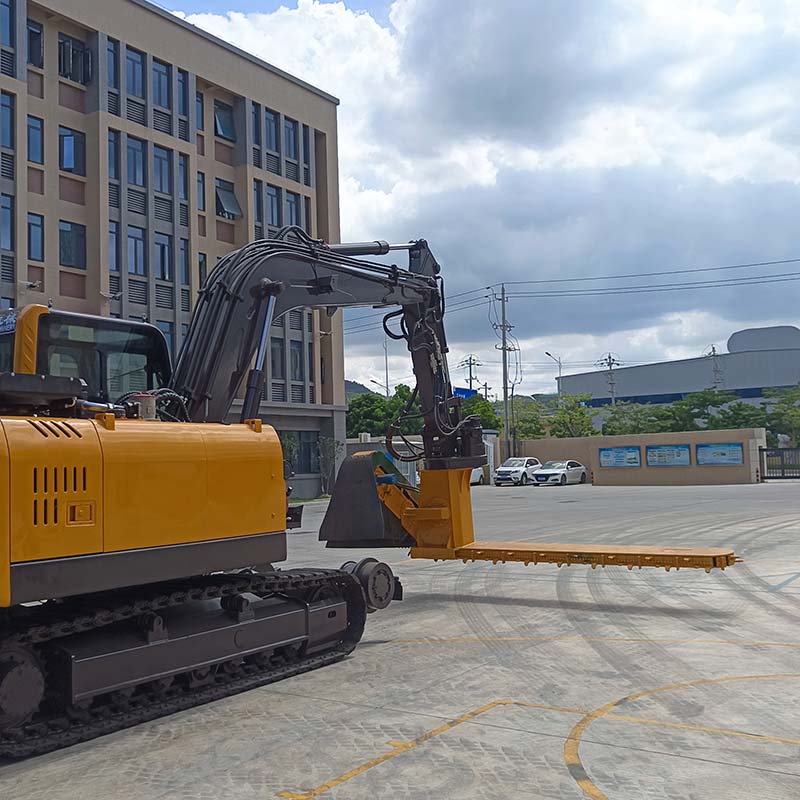

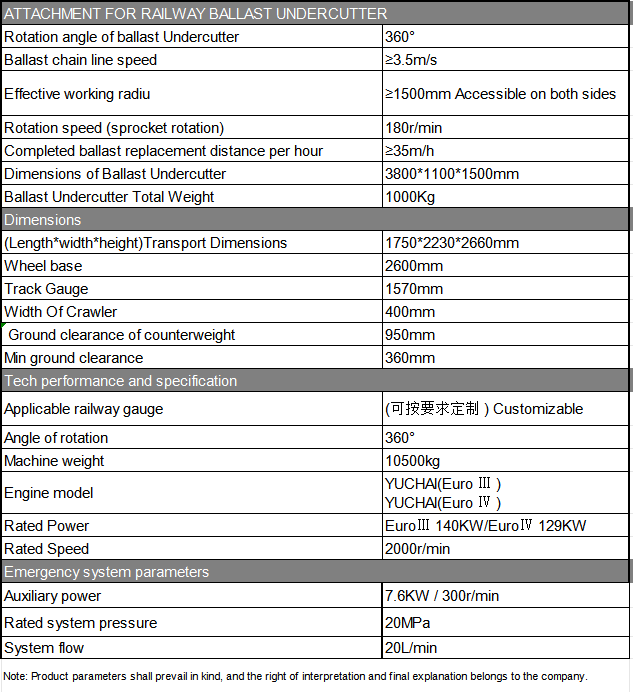

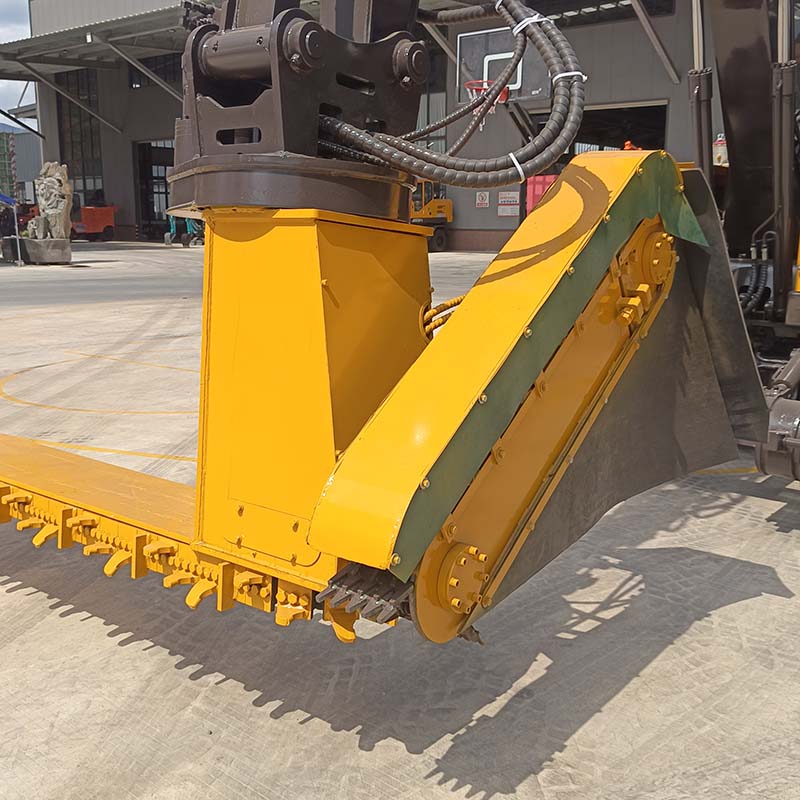

ATTACHMENT FOR RAILWAY BALLAST UNDERCUTTER |
|
|
Rotation angle of ballast Undercutter |
360° |
|
Ballast chain line speed |
≥3.5m/s |
|
Effective working radiu |
≥1500mmAccessible on both sides |
|
Rotation speed (sprocket rotation) |
180r/min |
|
Completed ballast replacement distance per hour |
≥35m/h |
|
Dimensions of Ballast Undercutter |
3800*1100*1500mm |
|
Ballast Undercutter Total Weight |
1000Kg |
|
Dimensions |
|
|
(Length*width*height)Transport Dimensions |
1750*2230*2660mm |
|
Wheel base |
2600mm |
|
Track Gauge |
1570mm |
|
Width Of Crawler |
400mm |
|
Ground clearance of counterweight |
950mm |
|
Min ground clearance |
360mm |
|
Tech performance and specification |
|
|
Applicable railway gauge |
Customizable |
|
Angle of rotation |
360° |
|
Machine weight |
10500kg |
|
Engine model |
YUCHAI(Euro Ⅲ ) |
|
Rated Power |
EuroⅢ 140KW/EuroⅣ 129KW |
|
Rated Speed |
2000r/min |
|
Emergency system parameters |
|
|
Auxiliary power |
7.6KW / 300r/min |
|
Rated system pressure |
20MPa |
|
System flow |
20L/min |
|
Note: Product parameters shall prevail in kind, and the right of interpretation and final explanation belongs to the company. |
|
Product Overview

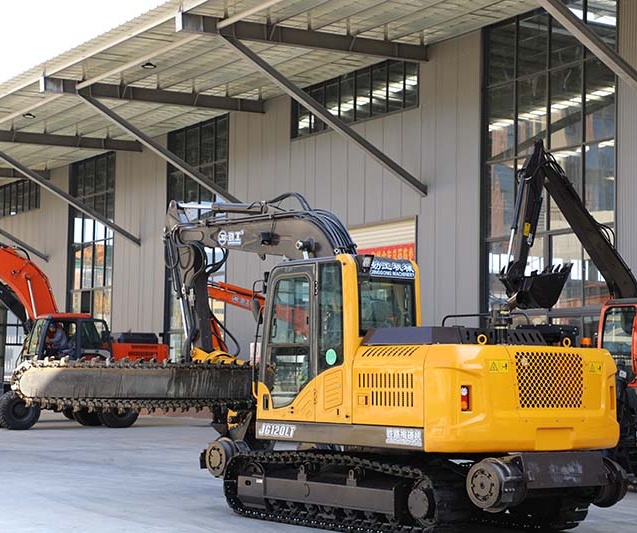

JG120LT 12ton Railway Ballast Machine Heavy Duty Hirail Excavator Ballast Regulator
JG120LT 12ton Railway Ballast Machine .All-weather durability, intelligent operation and maintenance system, adaptive gauge, compatible with narrow rail, standard rail and broad rail, safety compliance, CE, ISO certification, average daily operation volume of 8 km, helping global railway operators to reduce 60% of manual intervention and achieve optimal life cycle cost.
Product Advantages
Technical Specifications

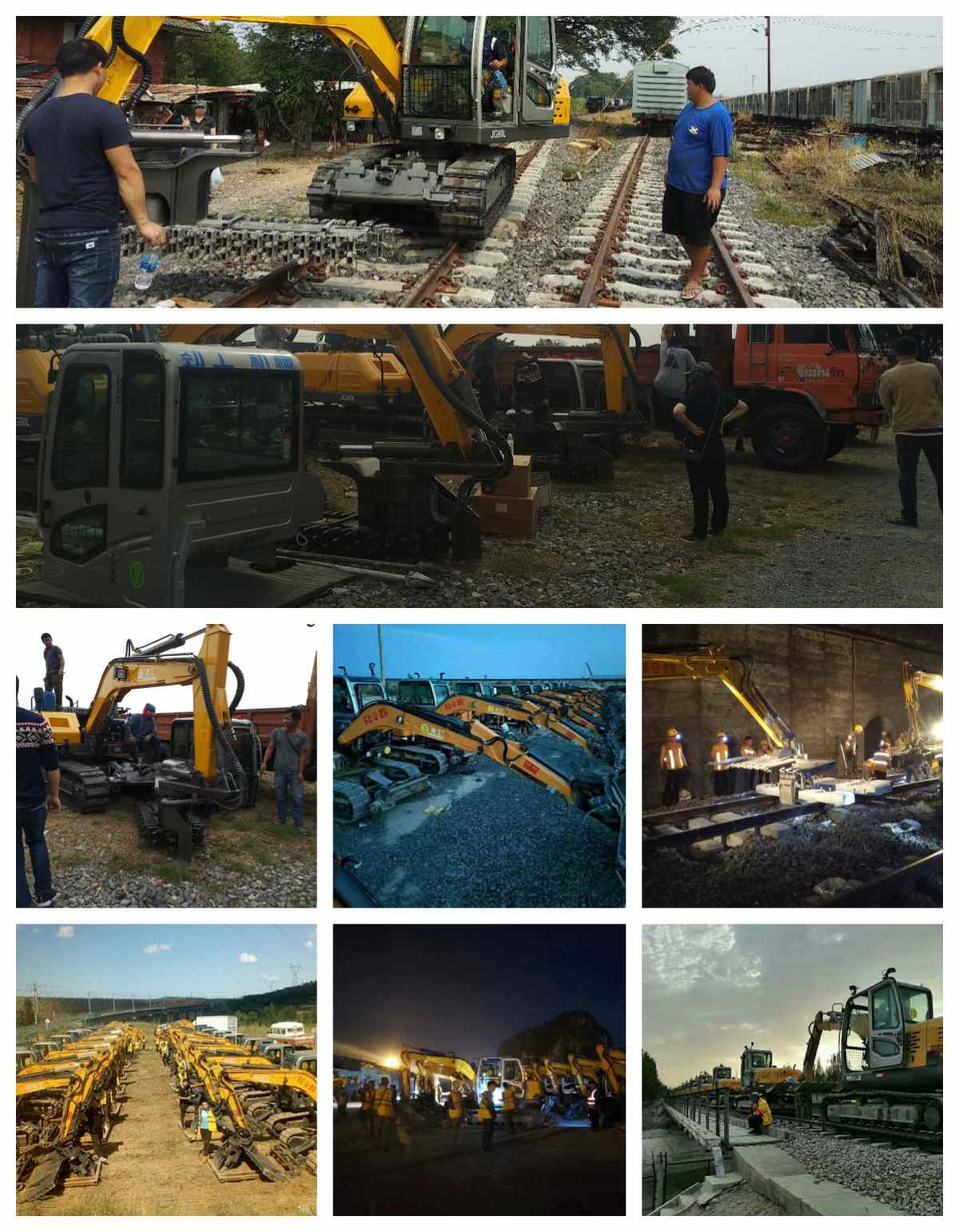

Application scenarios

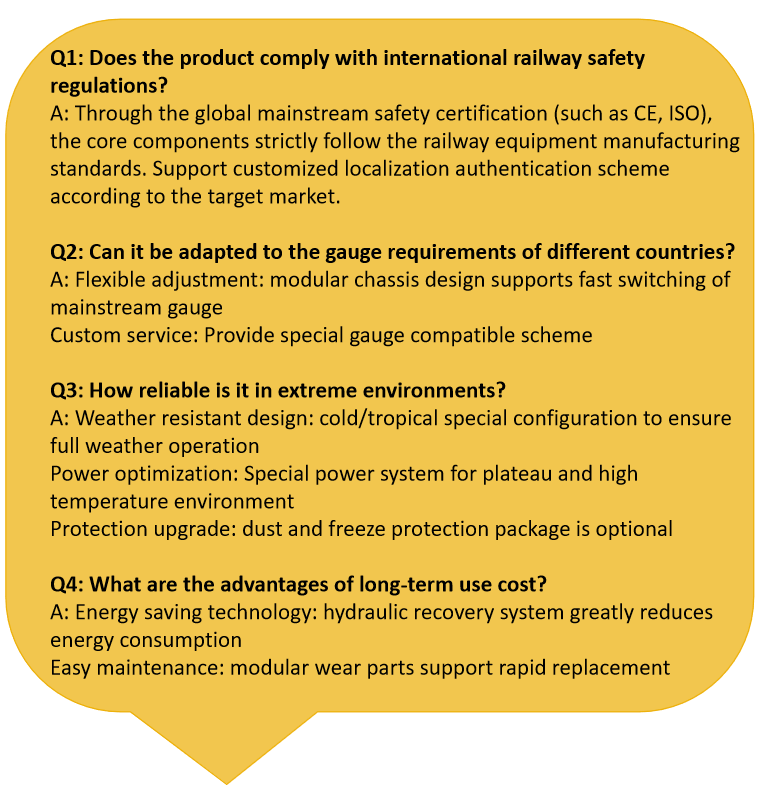

Q&A
Q1: Does the product comply with international railway safety regulations?
A: Through the global mainstream safety certification (such as CE, ISO), the core components strictly follow the railway equipment manufacturing standards. Support customized localization authentication scheme according to the target market.
Q2: Can it be adapted to the gauge requirements of different countries? A: Flexible adjustment: modular chassis design supports fast switching of mainstream gauge
Custom service: Provide special gauge compatible scheme
Q3: How reliable is it in extreme environments?
A: Weather resistant design: cold/tropical special configuration to ensure full weather operation
Power optimization: Special power system for plateau and high temperature environment
Protection upgrade: dust and freeze protection package is optional
Q4: What are the advantages of long-term use cost?
A: Energy saving technology: hydraulic recovery system greatly reduces energy consumption
B: Easy maintenance: modular wear parts support rapid replacement
A 12-ton all-around solution designed for high-intensity track maintenance, integrating ballast shaping, ballast under pillow and rail overhaul functions. Equipped with intelligent hydraulic system and scalable manipulator, a single machine can complete the tasks of traditional three devices.
