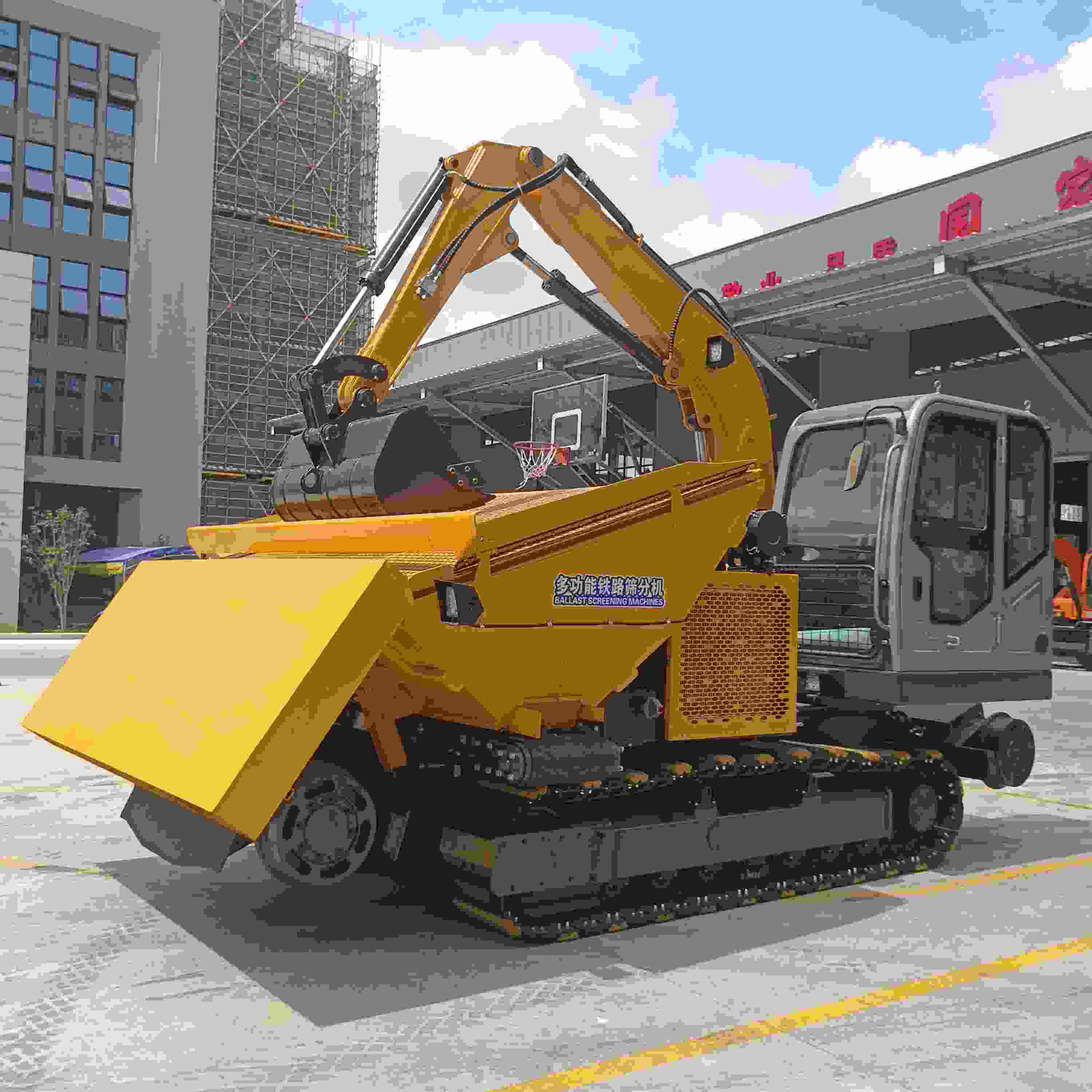

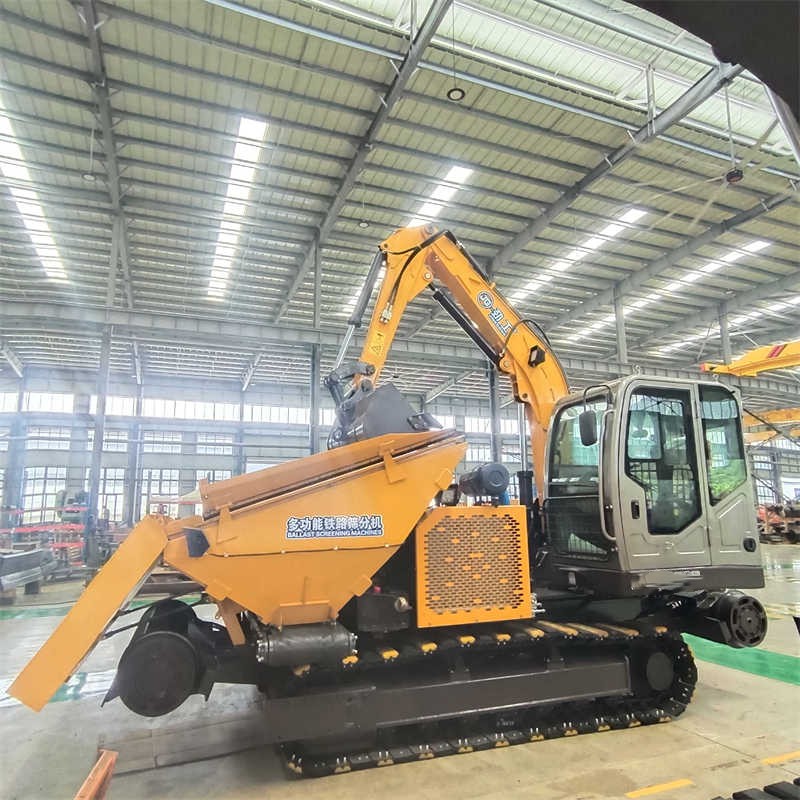

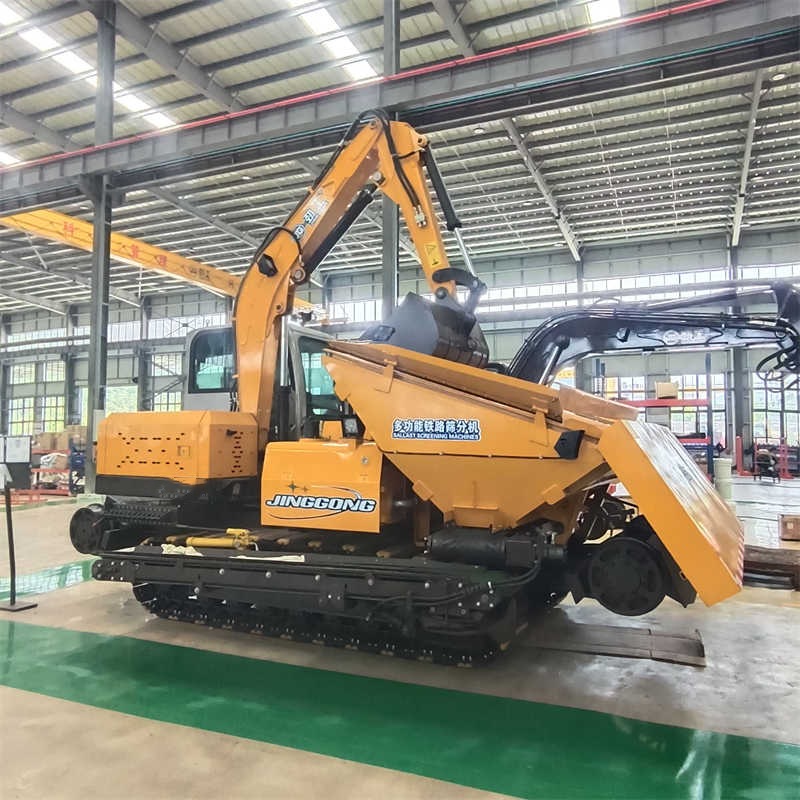

JG130SF Heavy-Duty Ballast Cleaning System: Integrated Screening & Debris Removal for Global High-Capacity Rail Networks
The JG130SF comprehensive ballast cleaning system has set a new benchmark for heavy rail maintenance. It integrates a large-capacity screening module with a debris removal conveyor on a single platform. This system is specifically designed for high-demand railway networks such as freight channels and high-speed lines. It eliminates the need for manual ballast cleaning - reducing labor costs and shortening project duration. Its key innovations include:
Dual-process efficiency: The patented vibrating screen separates impurities, while the magnetic conveyor can extract metal waste, achieving a higher reuse rate of waste materials;
Robust mobility: The reinforced crawler chassis, with a wide working width, can maintain stability on curved tracks, outperforming traditional equipment in tunnels;
Global compliance: Using engine and component levels ensures operation in extreme temperatures, with CE certification, suitable for EU railway projects.
In winter railway operations in Canada, it achieved a return on investment by saving fuel and having a lower life cycle cost compared to modular systems.
Item No :
JG130SFOrder(MOQ) :
1Payment :
FOBProduct Origin :
ChinaColor :
yellow/ orange/ blueShipping Port :
xiamenLead Time :
15-45 daysWeight :
13000kgEfficiency，The railway screening machine adopts advanced vibration technology and automatic control system, which can quickly deal with a large number of earth and rock materials and significantly shorten the railway construction and maintenance cycle.Accuracy，Equipped with adjustable screens and smart sensors, the equipment can accurately control the material particle size and output uniform sand and stone aggregates to meet global railway specifications.Reliable，Using high-strength steel and anti-corrosion coatings, the railway screening machine can still operate stably in wet, dusty or changeable terrain, with a mean time between failures of more than 5000 hours.
|
Tech performance and specification |
|
|
Applicable railway gauge |
1435mm Customizable |
|
Angle of rotation |
360° |
|
Machine weight |
13000kg |
|
Engine model |
YUCHAI(Euro IV) |
|
Rated power |
55.8KW |
|
Rated speed |
2200rpm |
|
Hydraulic system working pressure |
22MPa |
|
Hydranlic system flow |
150L/min |
|
Variable piston pump |
72ml/r |
|
Walking speed(High speed/low speed) |
15Km/h/3.5Km/h |
|
Grade climbing ability |
70% |
|
Volume of bucket |
0.5㎡ |
|
Swing overload pressure |
16MPa |
|
Full circle swinging time |
6s |
|
Fuel quantity |
4L/h |
|
Fuel tank capacity |
100L |
|
Hydraulic oil tank capacity |
100L |
|
Note:Product parameters shall prevail in kind,and the right of interpretation and final explanation belongs to the company. |
|
Product Overview
JG130SF Railroad Screen Machine Ballast Cleaning Machine Track Cleaner
Tailored for global railway operators, the JG130SF transforms traditional maintenance through eco-conscious innovation. Its contamination filtration technology promotes sustainable resource reuse, reducing waste volumes and environmental impact. Operators benefit from intuitive controls and modular architecture, enabling swift deployment for projects ranging from emergency repairs to scheduled upgrades. By mitigating manual hazards and optimizing material recovery, this solution positions itself as a strategic asset for agencies prioritizing cost-efficiency, regulatory compliance, and future-ready infrastructure resilience.
Product Advantages
Efficiency:Through the integrated sieve bucket design, can quickly screen and separate the ballast, gravel and other materials, significantly improve the efficiency of track maintenance or laying, reduce downtime.
Applicable:Suitable for a variety of railway scenarios, such as track foundation handling, material recovery and cleaning operations, easy to handle narrow Spaces and complex terrain, ensuring that the machine is versatile.
Affordable:The automatic screening process reduces manual intervention, reduces labor intensity and maintenance costs, and extends the life of the equipment, bringing long-term economic benefits.
Technical Specifications
Application scenarios
Q&A
Q1: What is the main use of railway screen bucket excavator?
A: It is dedicated to railway ballast screening, material cleaning and track maintenance, can efficiently separate impurities, ensure that the track foundation is stable, suitable for new or maintenance projects.
Q2: How does it adapt to different railway environments?
A: The compact design and flexible steering system allow stable operation beside narrow tracks or in rough terrain, and easy handling of various weather and geographical conditions.
Q3: Is maintenance complex? What daily maintenance is required?
A: The maintenance is simple and convenient. It only needs to check the screening bucket and hydraulic system regularly to clean up the residual material, so as to ensure the long-term reliable operation of the equipment.
Q4: What are its security advantages?
A: Equipped with multiple safety features, such as anti-rolloff supports and operator protection devices, to ensure safe operation in high-pressure railway environments and reduce the risk of accidents.
Q5: Do you provide after-sales support after purchase?
A: Yes, we provide comprehensive technical support and spare parts services, including remote guidance and on-site training, to ensure that you do not worry about using.
