Custom Solutions For Track Maintance

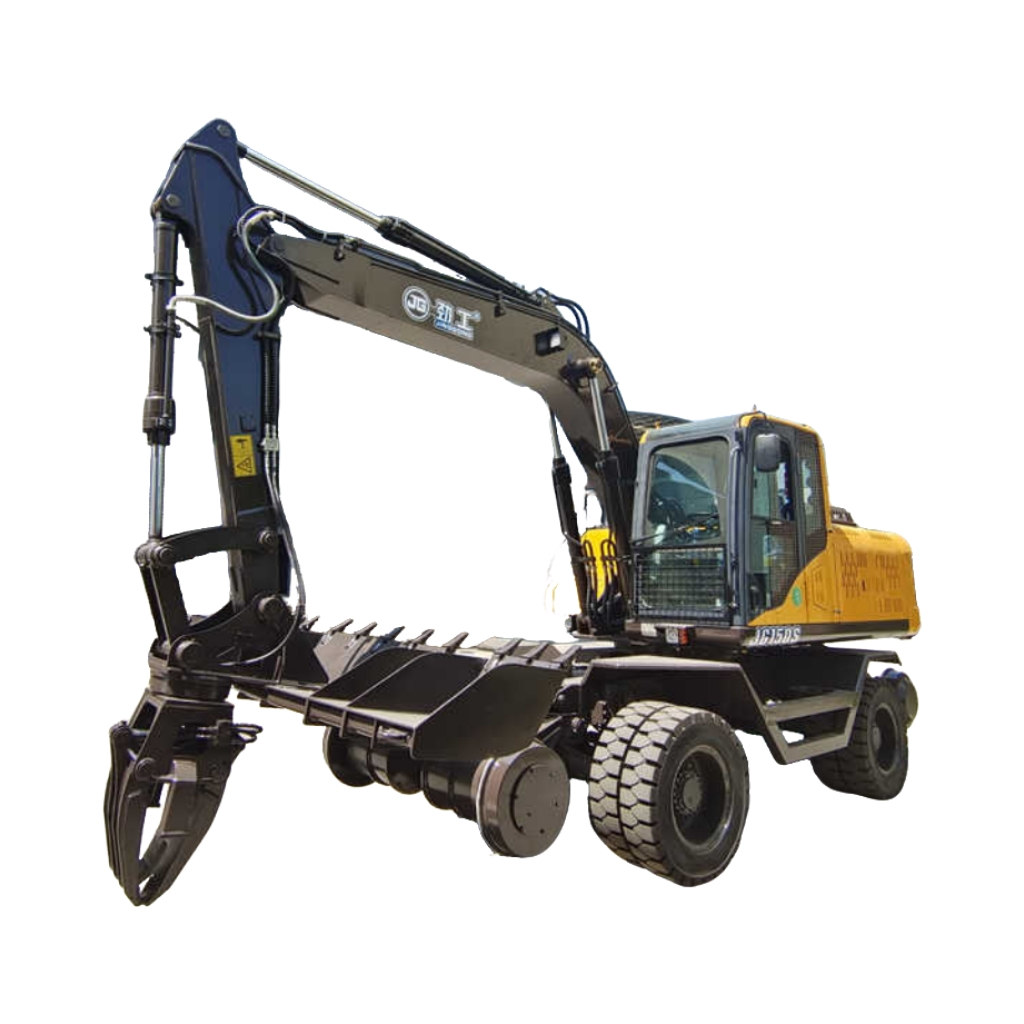

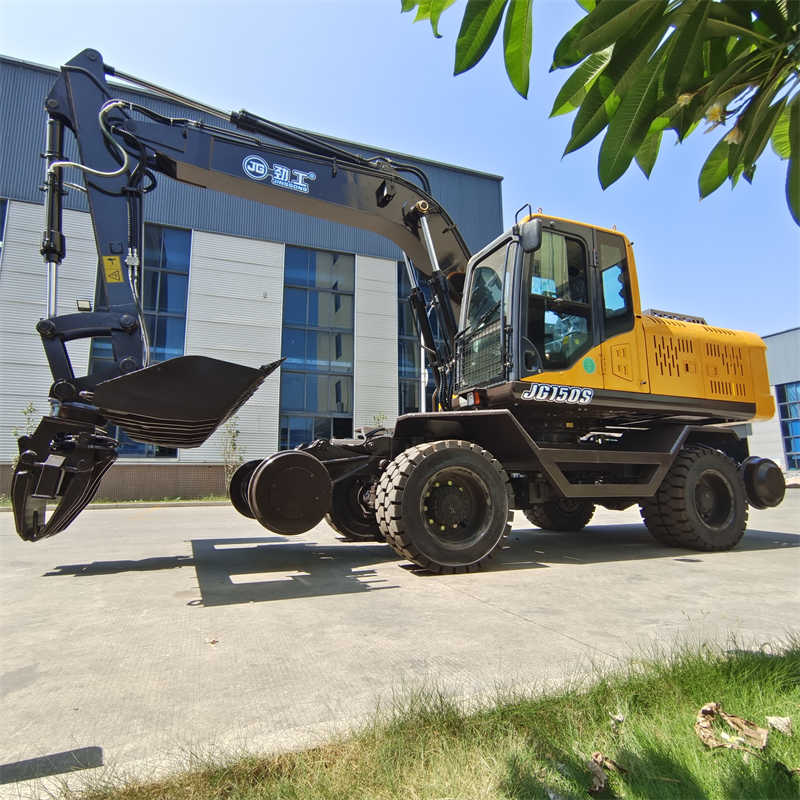

JG150ST JinGong 15ton Wheel Type Hirail Sleeper Changer Excavator Railway Excavator
The JG150ST is a special multi-functional engineering equipment developed by Seiko Machinery in response to the efficient maintenance and repair demands of railway tracks. It combines the "flexibility of wheeled movement" with the "adaptability for both road and rail use", and is specifically designed for scenarios such as rapid replacement of sleepers, track maintenance, and construction along the line. With a 15-ton working weight, it strikes a balance between operational capacity and mobility, making it a core mechanical asset in modern railway maintenance.
Item No :
JG150STOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :
15000KG

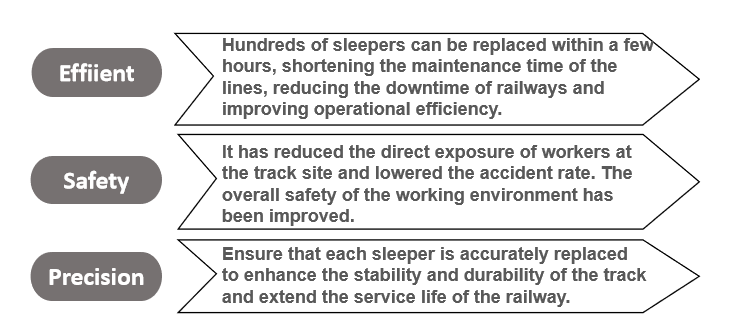

Hundreds of sleepers can be replaced within a few hours, shortening the maintenance time of the lines, reducing the downtime of railways and improving operational efficiency.It has reduced the direct exposure of workers at the track site and lowered the accident rate. The overall safety of the working environment has been improved.Ensure that each sleeper is accurately replaced to enhance the stability and durability of the track and extend the service life of the railway.
|

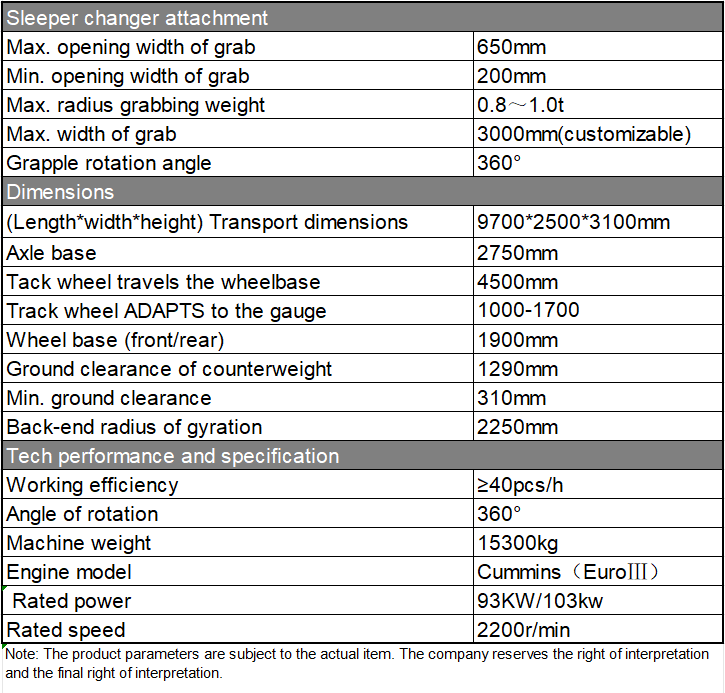

Sleeper changer attachment |
|
|
Max. opening width of grab |
650mm |
|
Min. opening width of grab |
200mm |
|
Max. radius grabbing weight |
0.8～1.0t |
|
Max. width of grab |
3000mm(customizable) |
|
Grapple rotation angle |
360° |
|
Dimensions |
|
|
(Length*width*height) Transport dimensions |
9700*2500*3100mm |
|
Axle base |
2750mm |
|
The track wheel travels the wheelbase |
4500mm |
|
The track wheel ADAPTS to the gauge |
1000-1700(customizable) |
|
Wheel base (front/rear) |
1900mm |
|
Ground clearance of counterweight |
1290mm |
|
Min. ground clearance |
310mm |
|
Back-end radius of gyration |
2250mm |
|
Tech performance and specification |
|
|
Working efficiency |
≥40pcs/h |
|
Angle of rotation |
360° |
|
Machine weight |
15300kg |
|
Engine model |
Cummins（EuroⅢ） |
|
Rated power |
93KW/103kw |
|
Rated speed |
2200r/min |
|
Note: Product parameters are subject to physical objects, and the right of interpretation and final interpretation belongs to the company. |
|
Product Overview

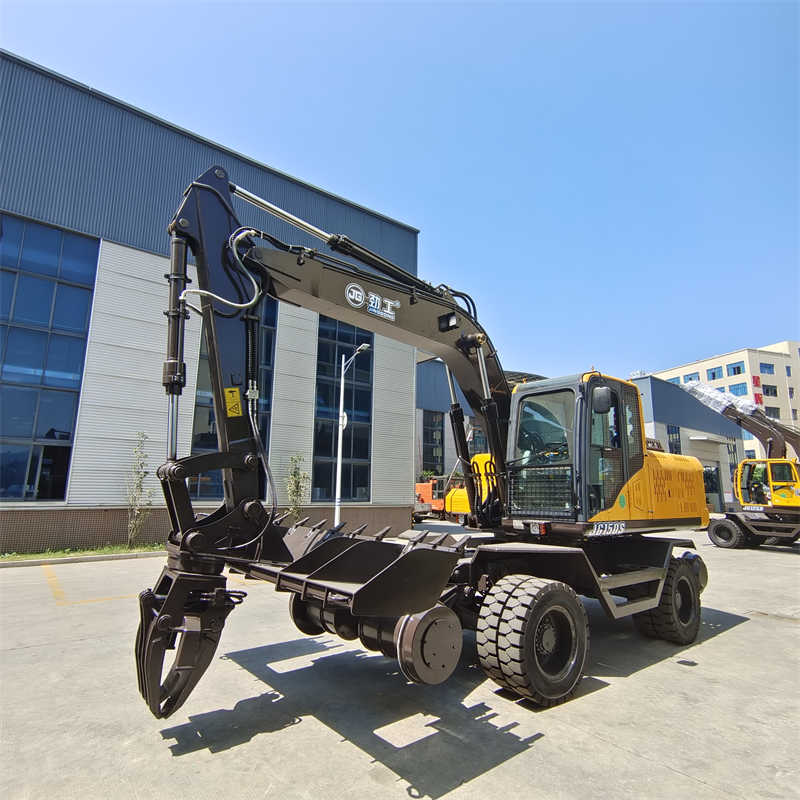

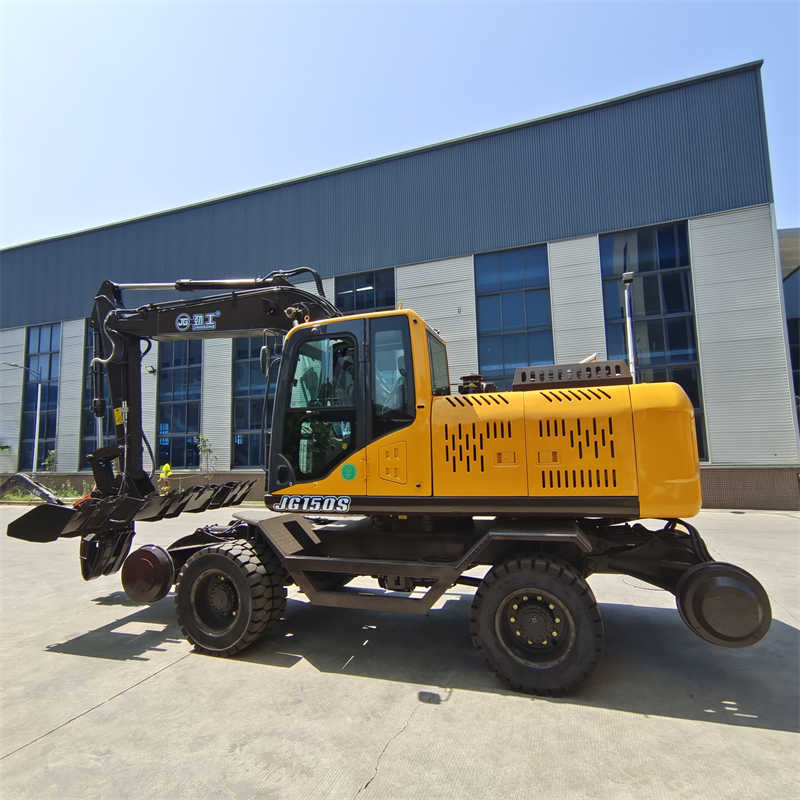

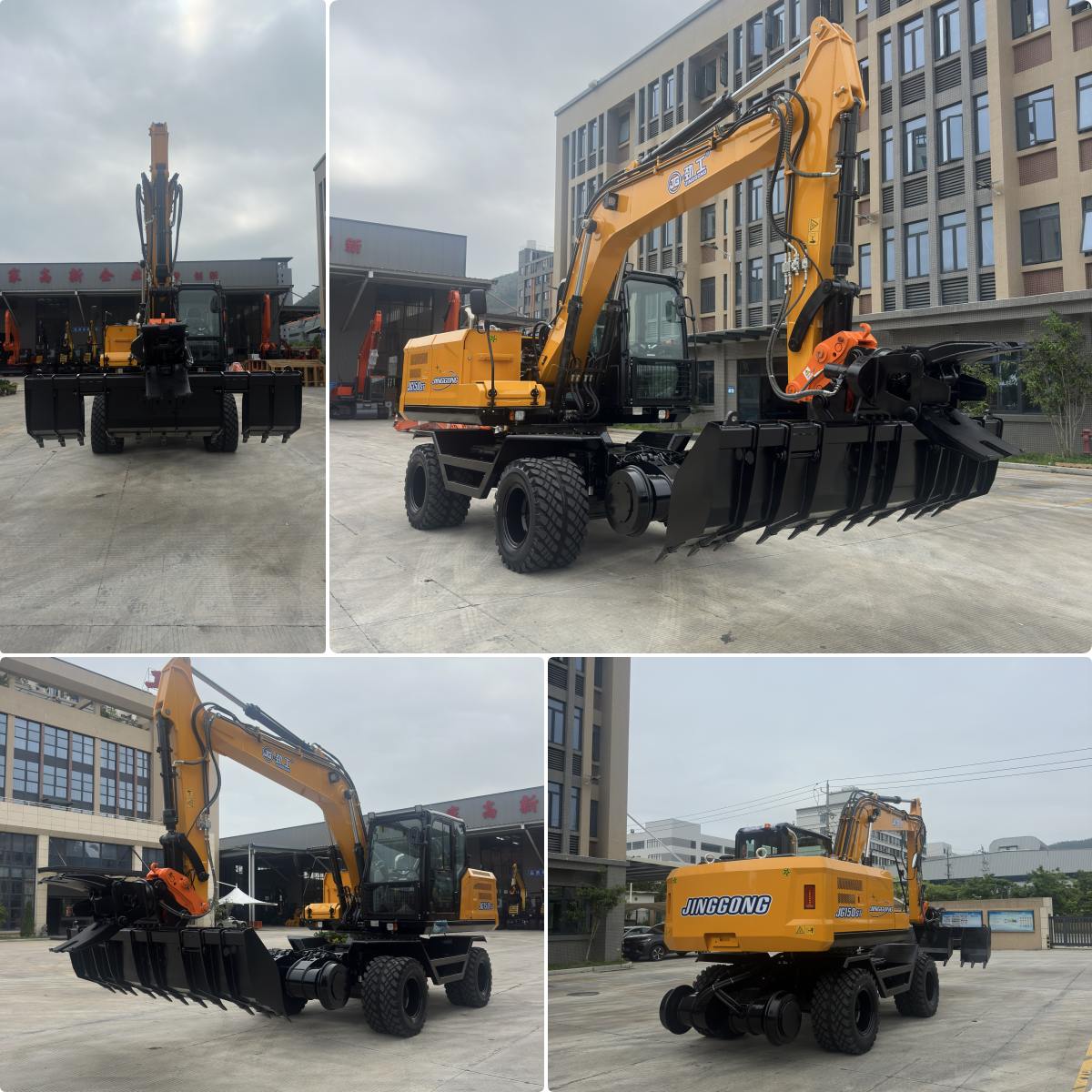

15ton Wheel Type Hirail Sleeper Changer Excavator Railway Excavator
The JG150ST, a 15-ton wheel-mounted dual-purpose excavator for both road and rail by Seiko, is specially designed for efficient railway maintenance. It integrates a sleeper replacement system and supports dual-mode switching between road and rail. Operated by a single person, it can replace 8 to 12 sleepers per hour. Compatible with various attachments, it is suitable for track construction, emergency rescue, and night maintenance, significantly enhancing the efficiency and safety of line maintenance through mechanized operations.
Product Advantages
Technical Specifications

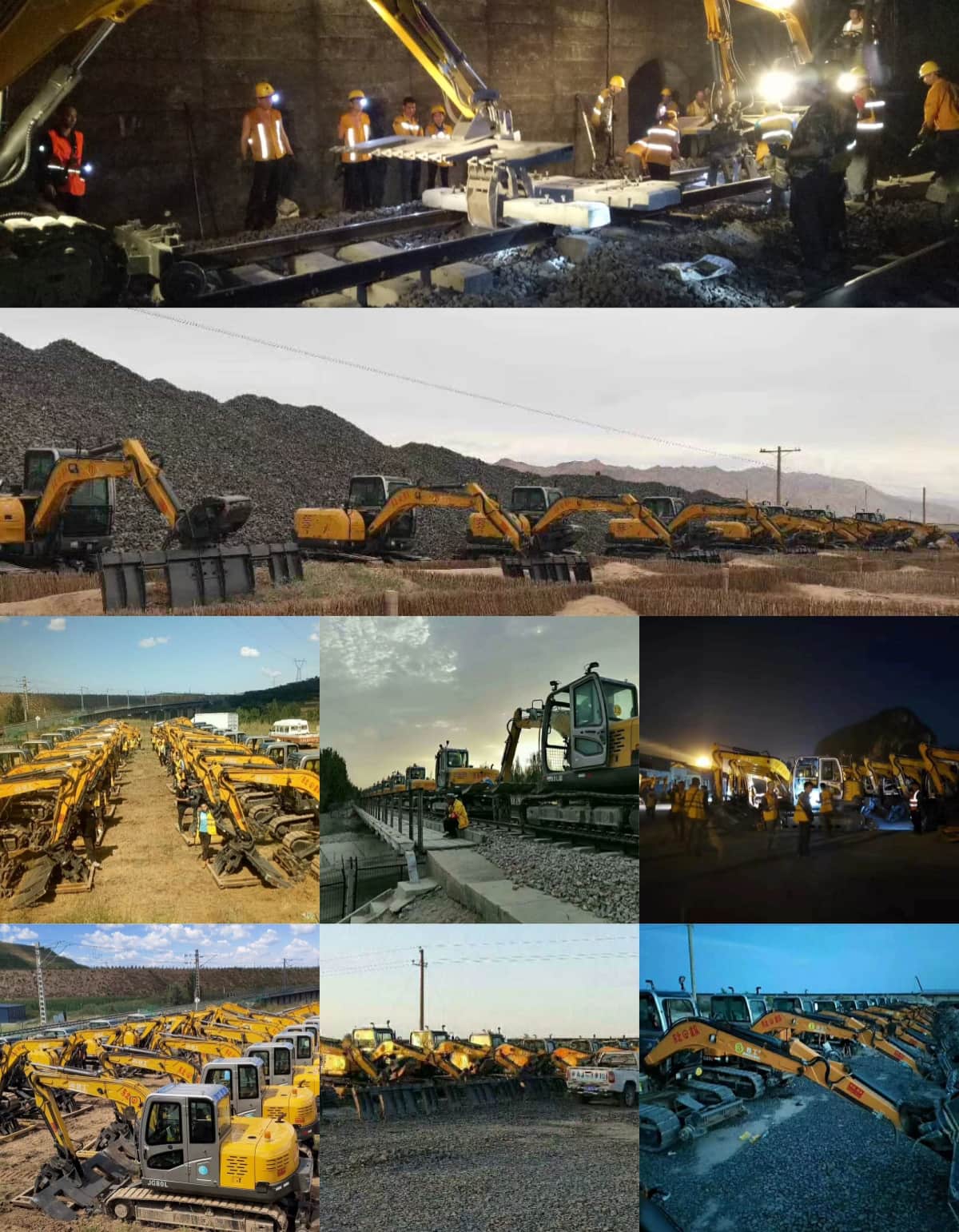

Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
