Custom Solutions For Track Maintance
Engineered for the demanding environments of railway construction and maintenance, the JG80LT 8-ton Crawler Excavator stands as your reliable partner on the tracks. Its robust crawler undercarriage provides exceptional stability and low ground pressure, crucial for navigating uneven ballast, soft shoulders, and confined spaces often encountered near rail lines. Equipped with a responsive hydraulic single bucket mechanism, this powerful machine delivers precise digging, trenching, and material handling capabilities, tackling everything from ballast renewal and drainage work to delicate trenching near sensitive infrastructure. Built compact yet powerful, the JG80LT excels where space is limited but performance cannot be compromised, ensuring your railway projects progress smoothly and efficiently.
Item No :
JG80LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :

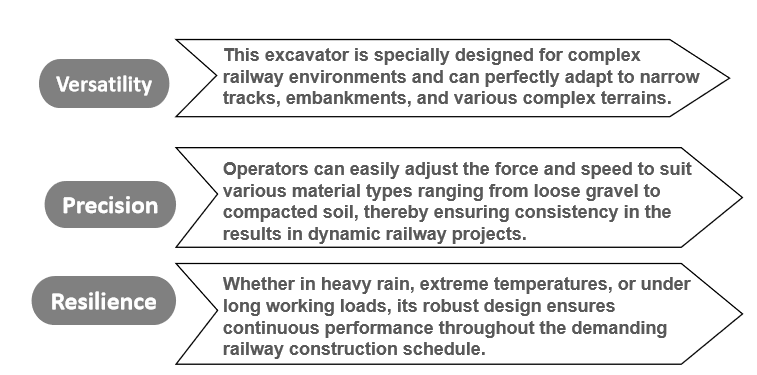

8000kgThis excavator is specially designed for complex railway environments and can perfectly adapt to narrow tracks, embankments, and various complex terrains.Operators can easily adjust the force and speed to suit various material types ranging from loose gravel to compacted soil, thereby ensuring consistency in the results in dynamic railway projects. Whether in heavy rain, extreme temperatures, or under long working loads, its robust design ensures continuous performance throughout the demanding railway construction schedule.
|

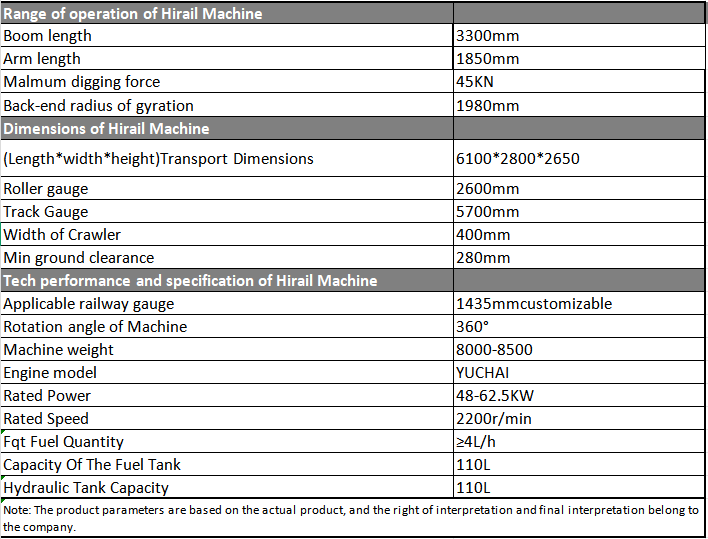

Range of operation of Hirail Machine |
|
|
Boom length |
3300mm |
|
Arm length |
1850mm |
|
Malmum digging force |
45KN |
|
Back-end radius of gyration |
1980mm |
|
Dimensions of Hirail Machine |
|
|
(Length*width*height)Transport Dimensions |
6100*2800*2650 |
|
Roller gauge |
2600mm |
|
Track Gauge |
5700mm |
|
Width of Crawler |
400mm |
|
Min ground clearance |
280mm |
|
Tech performance and specification of Hirail Machine |
|
|
Applicable railway gauge |
1435mmcustomizable |
|
Rotation angle of Machine |
360° |
|
Machine weight |
8000-8500 |
|
Engine model |
YUCHAI |
|
Rated Power |
48-62.5KW |
|
Rated Speed |
2200r/min |
|
Fqt Fuel Quantity |
≥4L/h |
|
Capacity Of The Fuel Tank |
110L |
|
Hydraulic Tank Capacity |
110L |
|
Note: The product parameters are based on the actual product, and the right of interpretation and final interpretation belong to the company. |
|
Product Overview

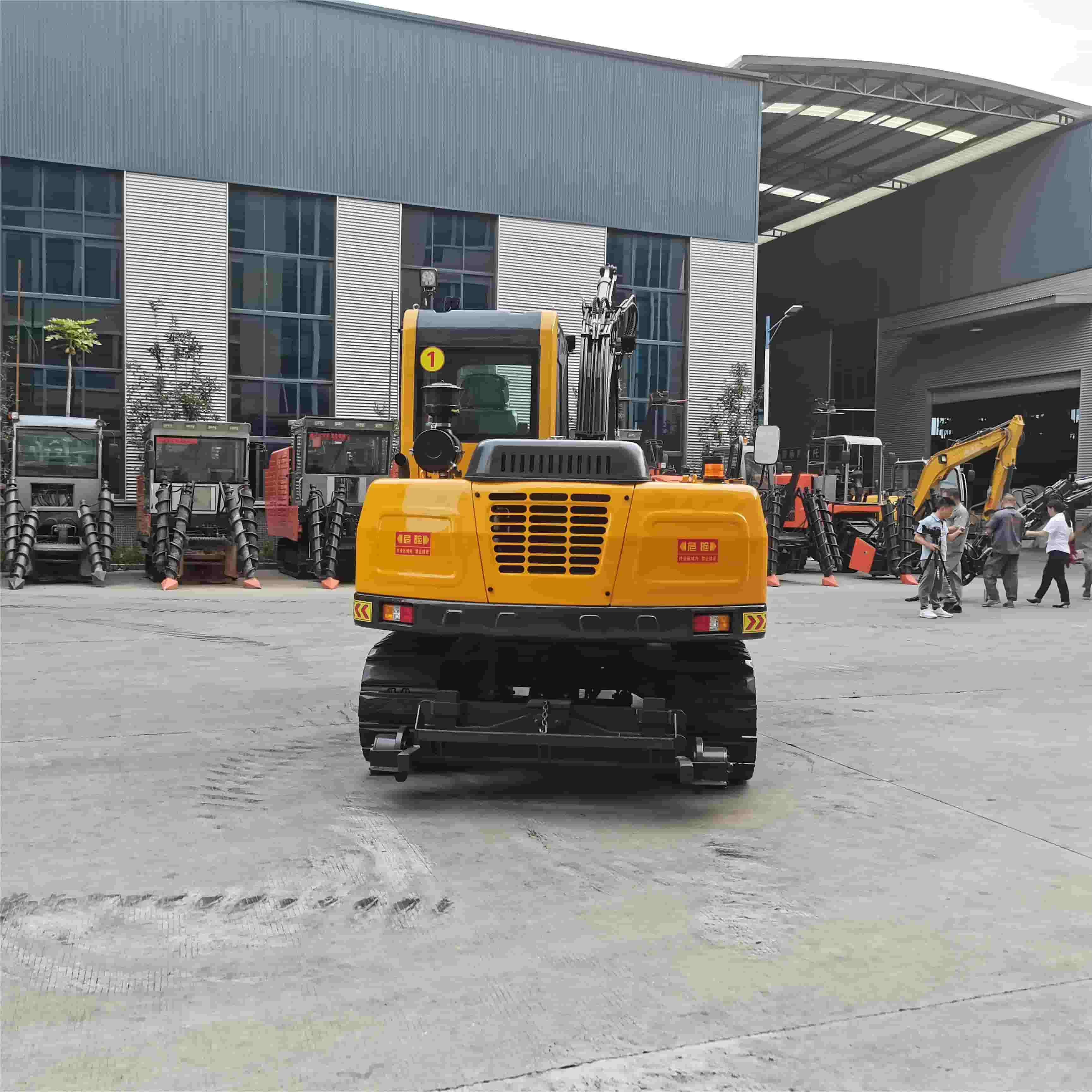

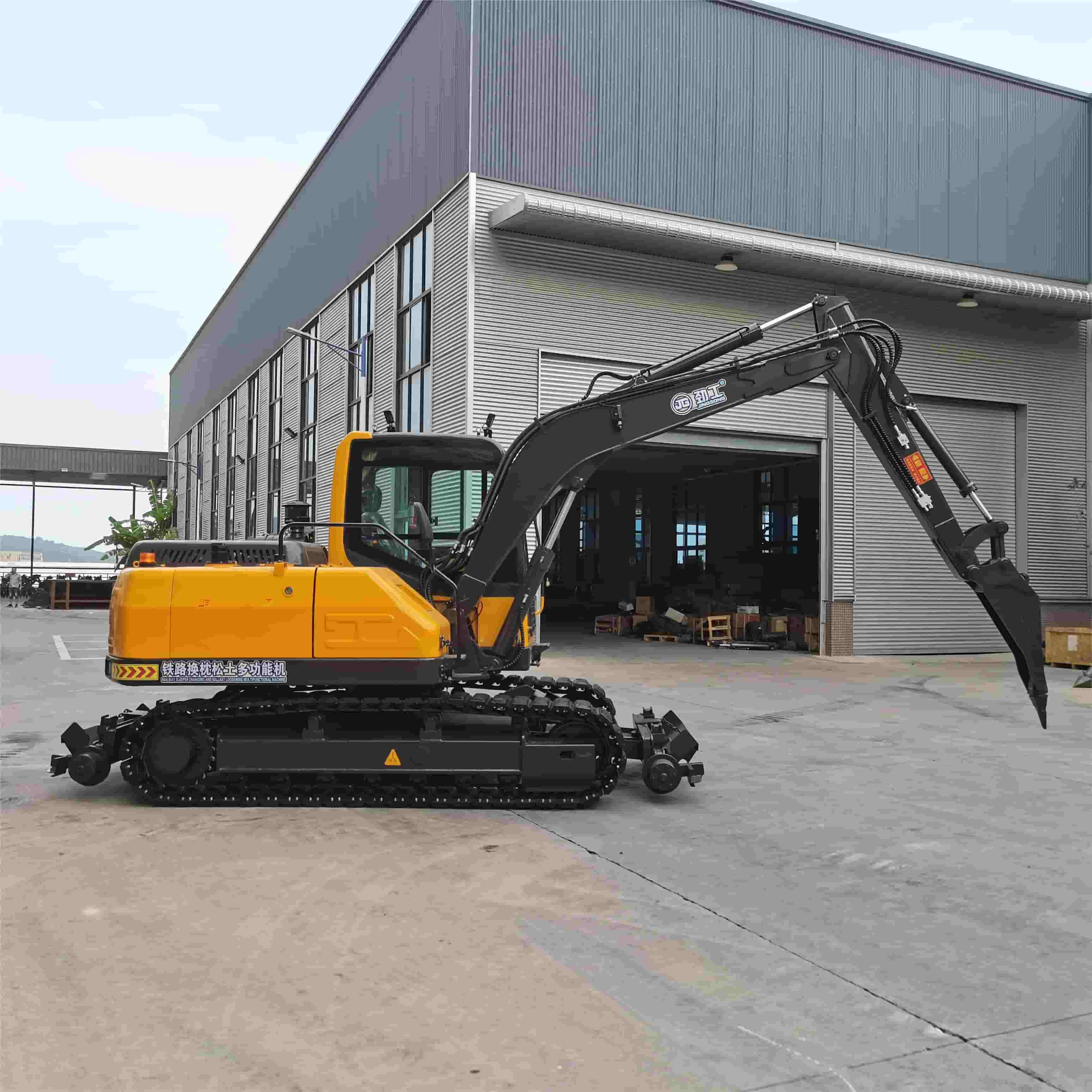

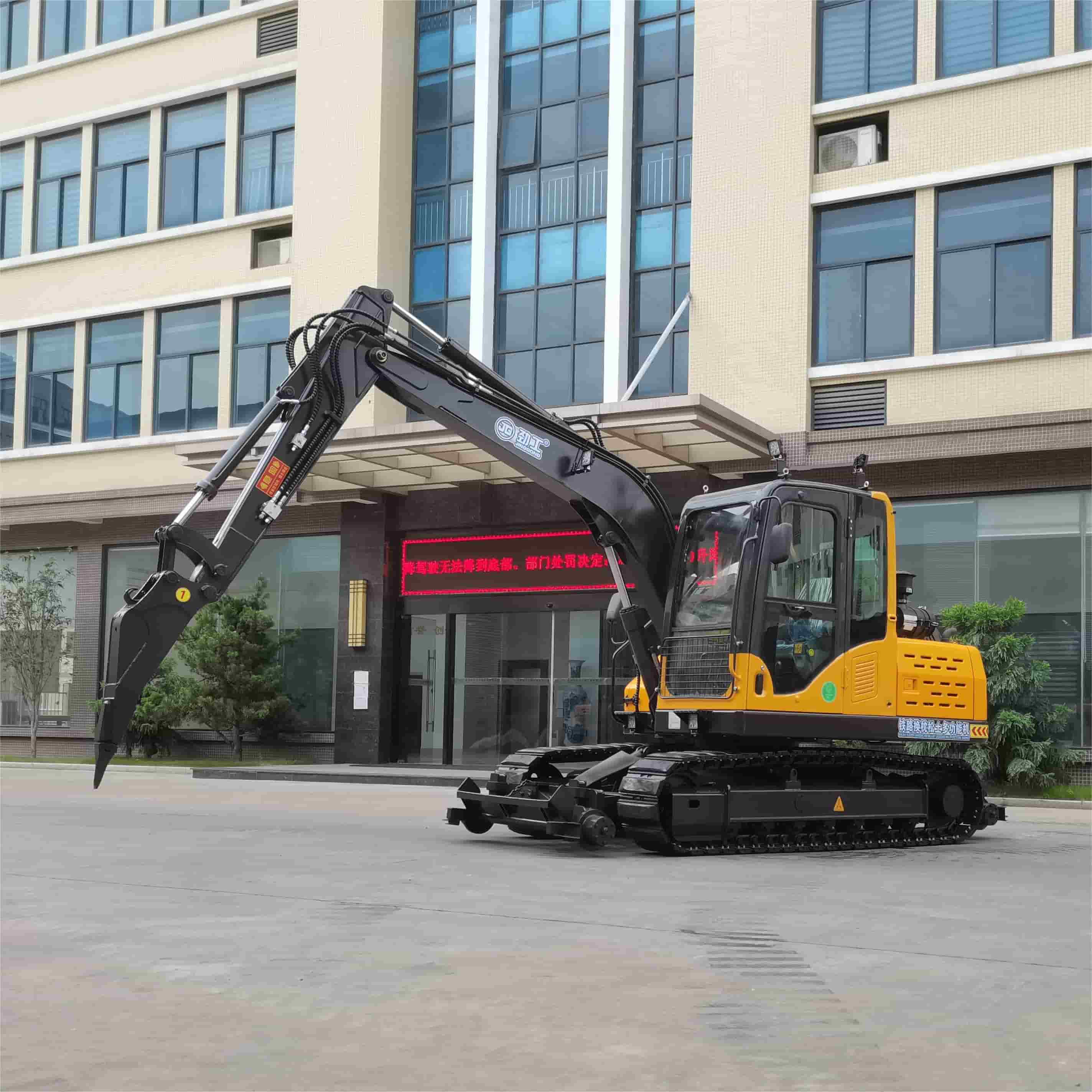

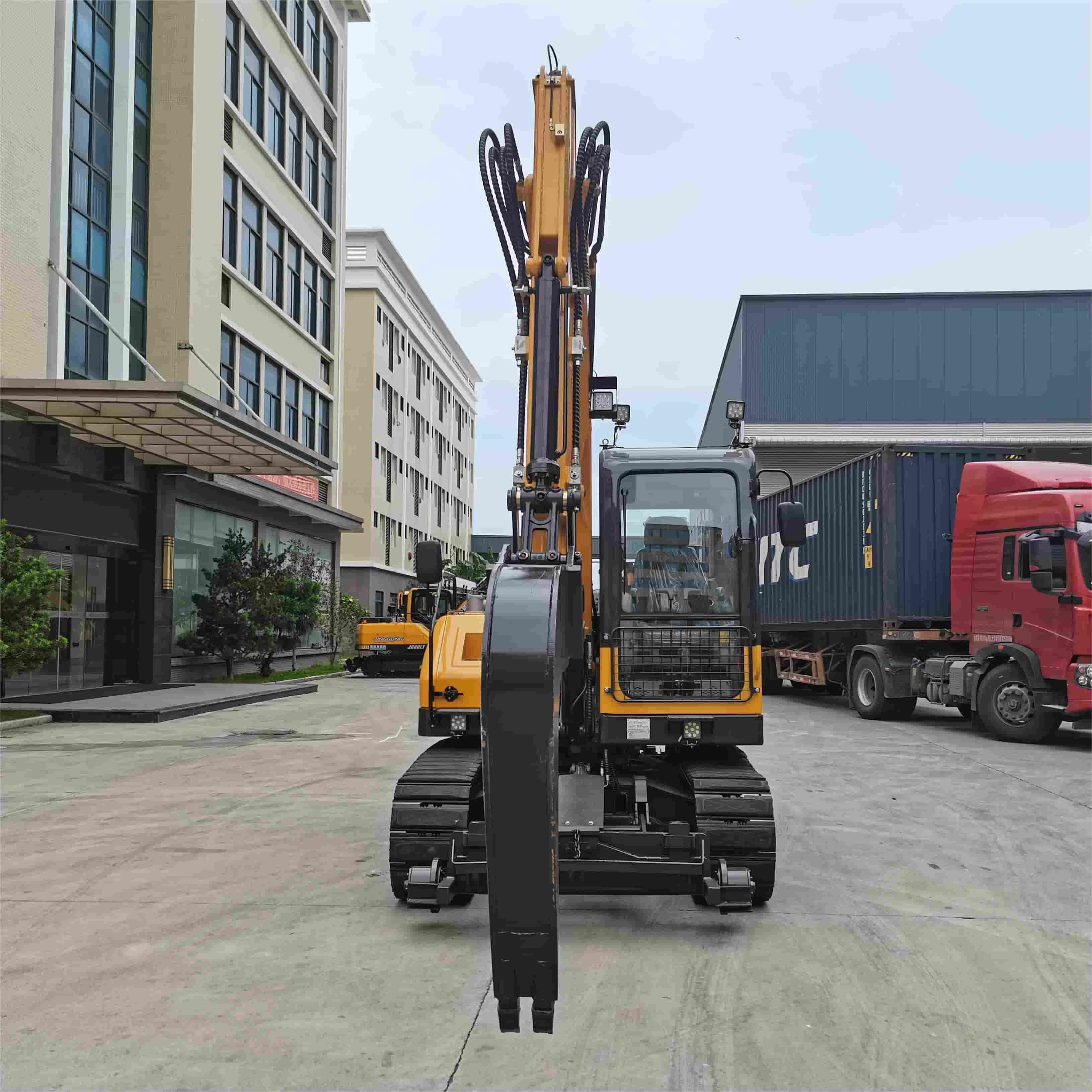

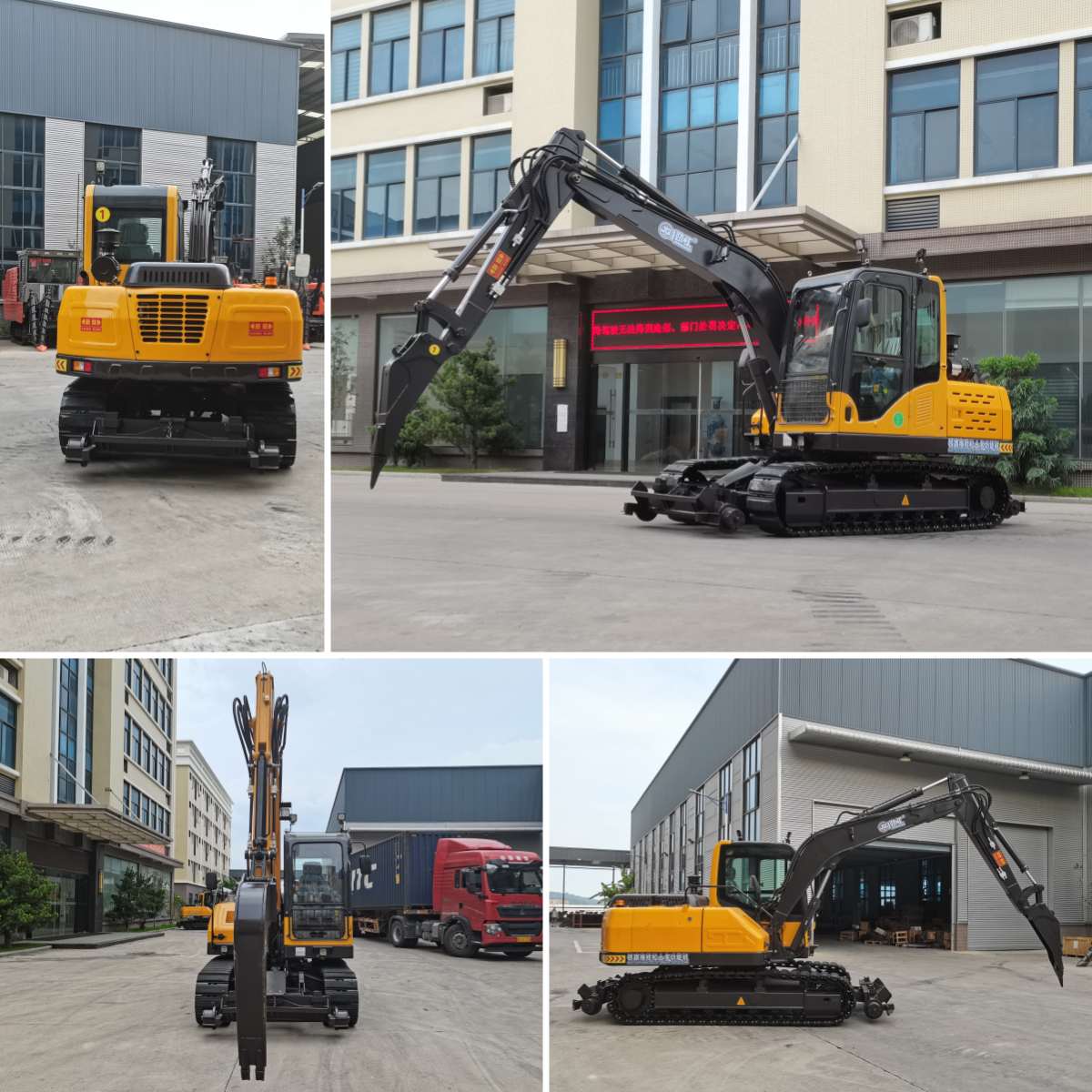

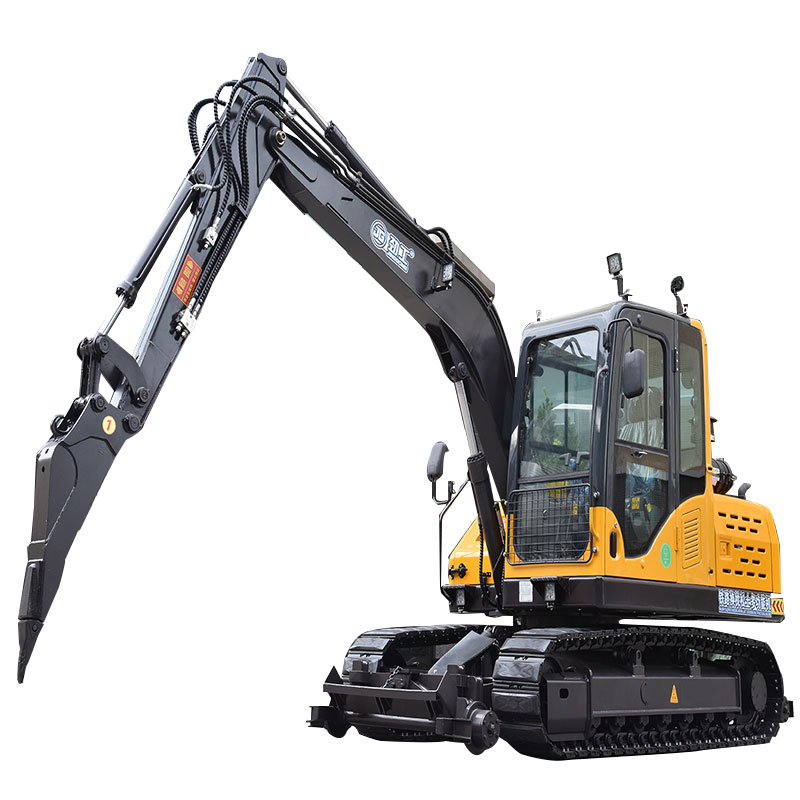

JG80LT 8-ton crawler excavator with hydraulic single bucket mechanism
Experience versatile power tailored for rail-side applications with the JG80LT 8-ton Crawler Excavator. This agile machine combines the maneuverability of a compact excavator with the stability needed for safe and productive work on railway embankments and construction sites. Its advanced hydraulic system drives the single bucket mechanism for smooth, responsive digging and grading, making light work of earthmoving, ditch cleaning, and precise material placement tasks essential for rail infrastructure projects. Designed with operator comfort and ease of use in mind, the JG80LT readily accepts various attachments, transforming it into a multi-functional asset for tackling diverse challenges along the rail network. Depend on its focused strength and adaptability to maximize your operational efficiency on every job.

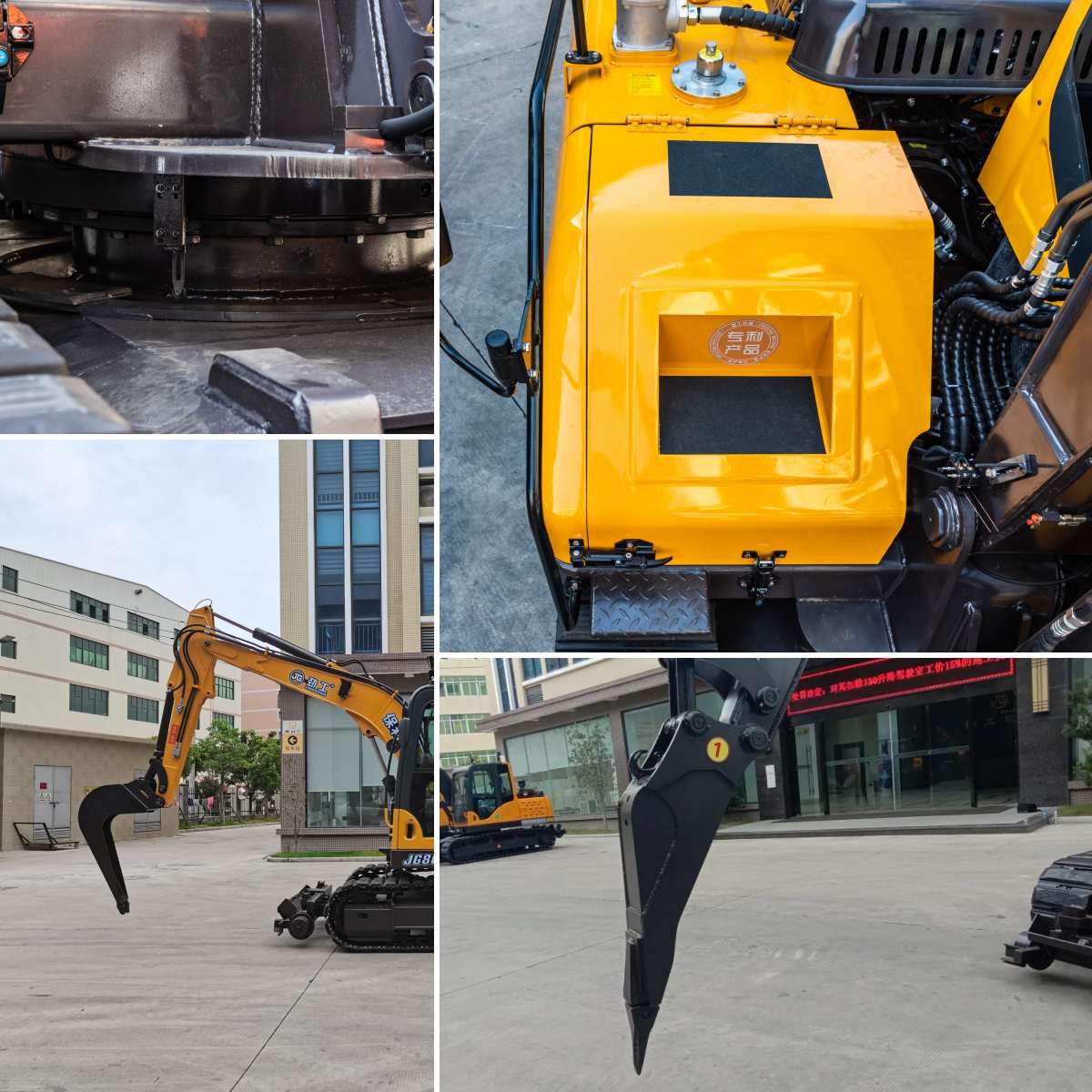

Product Advantages
Technical Specifications

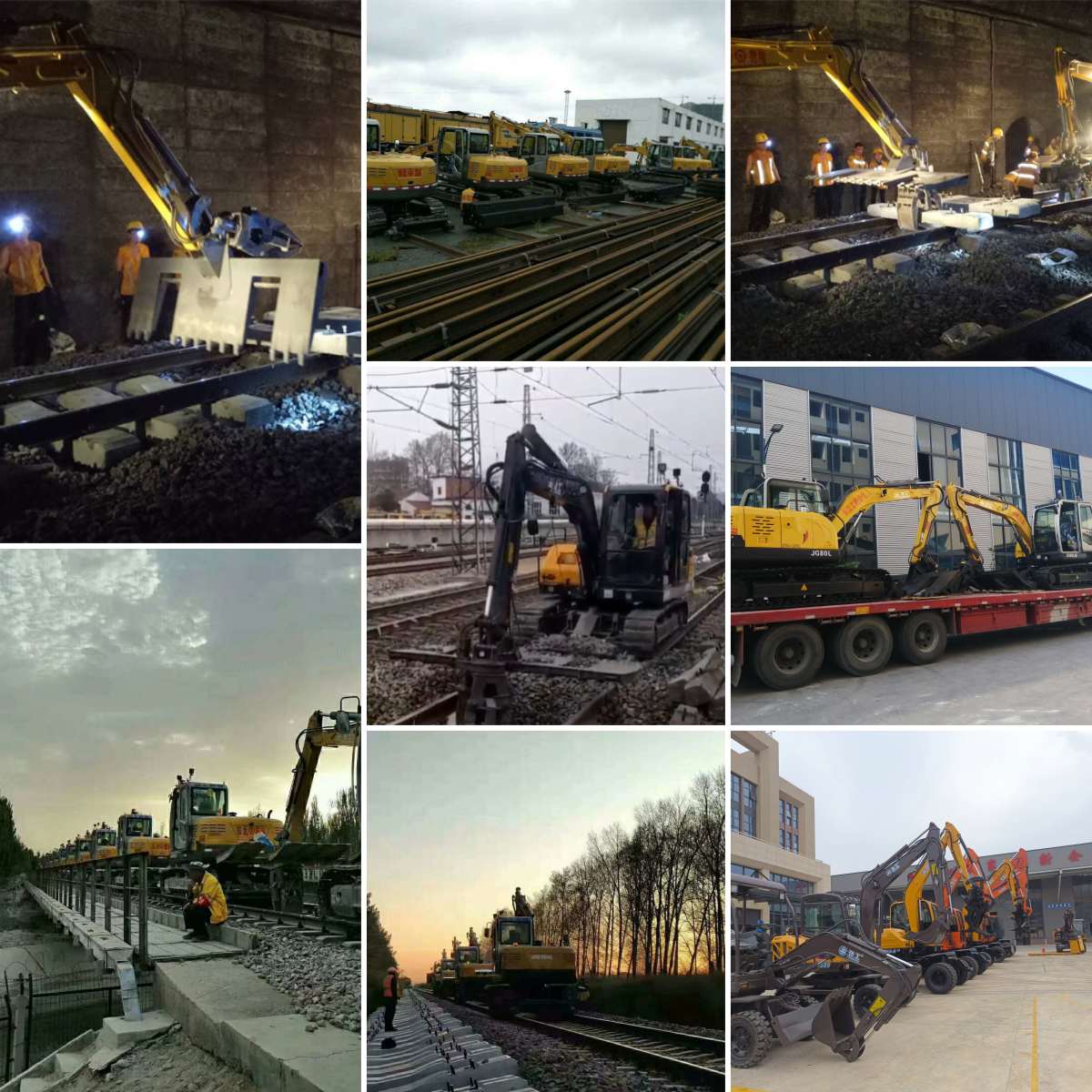

Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.

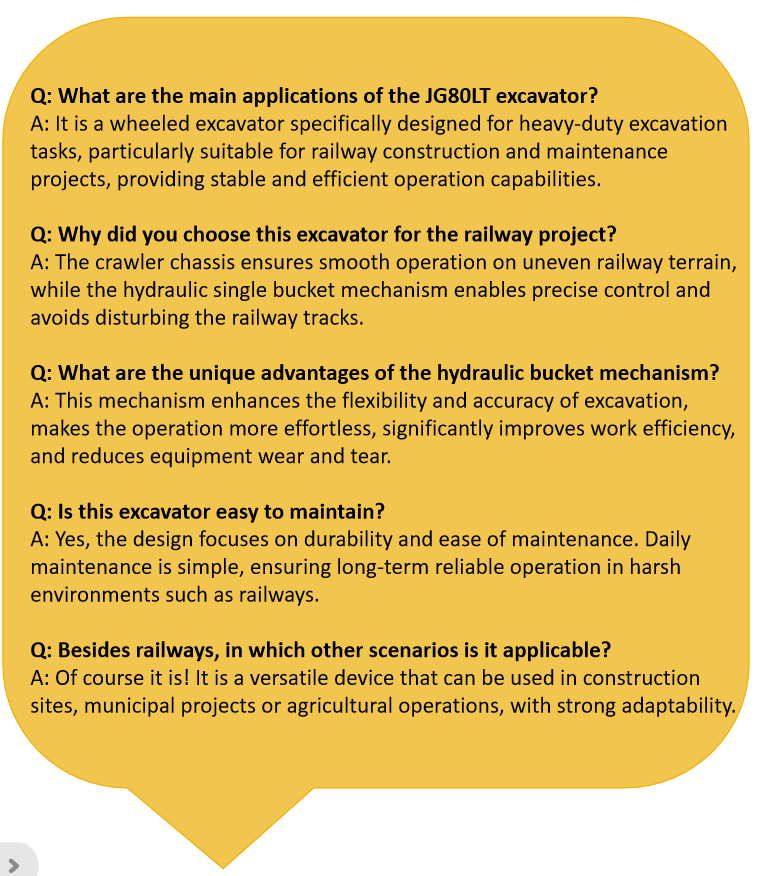

Q&A
JG80LT is an 8-ton crawler railway excavator and sleeper changer integrated equipment, specially designed for railway maintenance. It integrates excavation and sleeper replacement functions, flexible and efficient operation, adapts to the narrow track environment, significantly improves construction safety and efficiency, and reduces maintenance costs.
