Custom Solutions For Track Maintance
The JG80S 8Ton Wheeled Railway Excipator is a purpose-engineered solution for modern rail maintenance, combining agility with robust performance. Designed specifically for railway sleeper replacement and trackbed excavation, its compact wheeled chassis ensures seamless maneuverability across narrow tracks and confined workspaces. The machine’s hydraulic system is calibrated for precision digging and lifting, enabling operators to tackle sleeper removal, ballast adjustment, and debris clearing with minimal disruption to rail operations. Enhanced with shock-absorbing undercarriage components, it maintains stability on uneven terrain while reducing vibration transfer to delicate rail infrastructure. Ideal for both routine maintenance and emergency repairs, this excavator prioritizes operator comfort through an ergonomic cabin and intuitive controls, ensuring prolonged productivity in demanding environments.
Item No :
JG80SOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :
8000kgHundreds of sleepers can be replaced within a few hours, shortening the maintenance time of the lines, reducing the downtime of railways and improving operational efficiency.It has reduced the direct exposure of workers at the track site and lowered the accident rate. The overall safety of the working environment has been improved.Ensure that each sleeper is accurately replaced to enhance the stability and durability of the track and extend the service life of the railway.
|

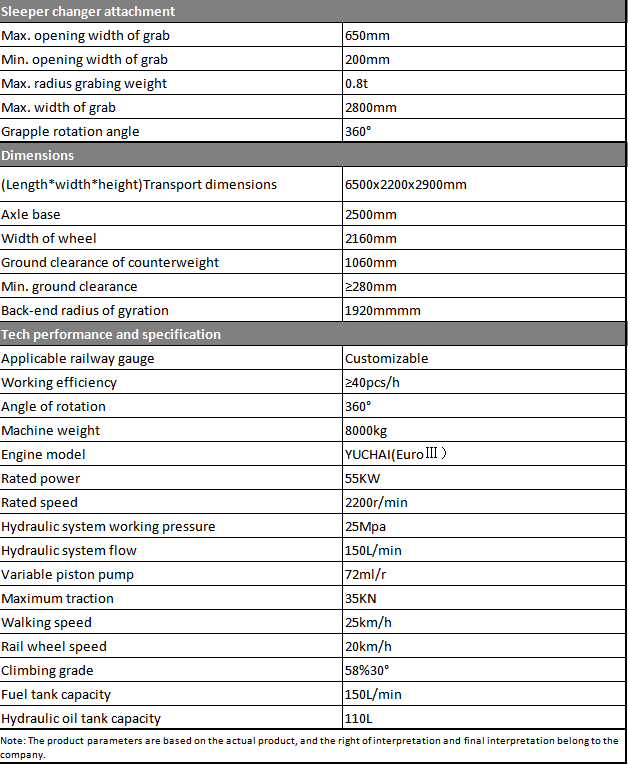

Sleeper changer attachment |
|
|
Max. opening width of grab |
650mm |
|
Min. opening width of grab |
200mm |
|
Max. radius grabing weight |
0.8t |
|
Max. width of grab |
2800mm |
|
Grapple rotation angle |
360° |
|
Dimensions |
|
|
(Length*width*height)Transport dimensions |
6500x2200x2900mm |
|
Axle base |
2500mm |
|
Width of wheel |
2160mm |
|
Ground clearance of counterweight |
1060mm |
|
Min. ground clearance |
≥280mm |
|
Back-end radius of gyration |
1920mmmm |
|
Tech performance and specification |
|
|
Applicable railway gauge |
Customizable |
|
Working efficiency |
≥40pcs/h |
|
Angle of rotation |
360° |
|
Machine weight |
8000kg |
|
Engine model |
YUCHAI(EuroⅢ） |
|
Rated power |
55KW |
|
Rated speed |
2200r/min |
|
Hydraulic system working pressure |
25Mpa |
|
Hydraulic system flow |
150L/min |
|
Variable piston pump |
72ml/r |
|
Maximum traction |
35KN |
|
Walking speed |
25km/h |
|
Rail wheel speed |
20km/h |
|
Climbing grade |
58%30° |
|
Fuel tank capacity |
150L/min |
|
Hydraulic oil tank capacity |
110L |
|
Note: The product parameters are based on the actual product, and the right of interpretation and final interpretation belong to the company. |
|
Product Overview

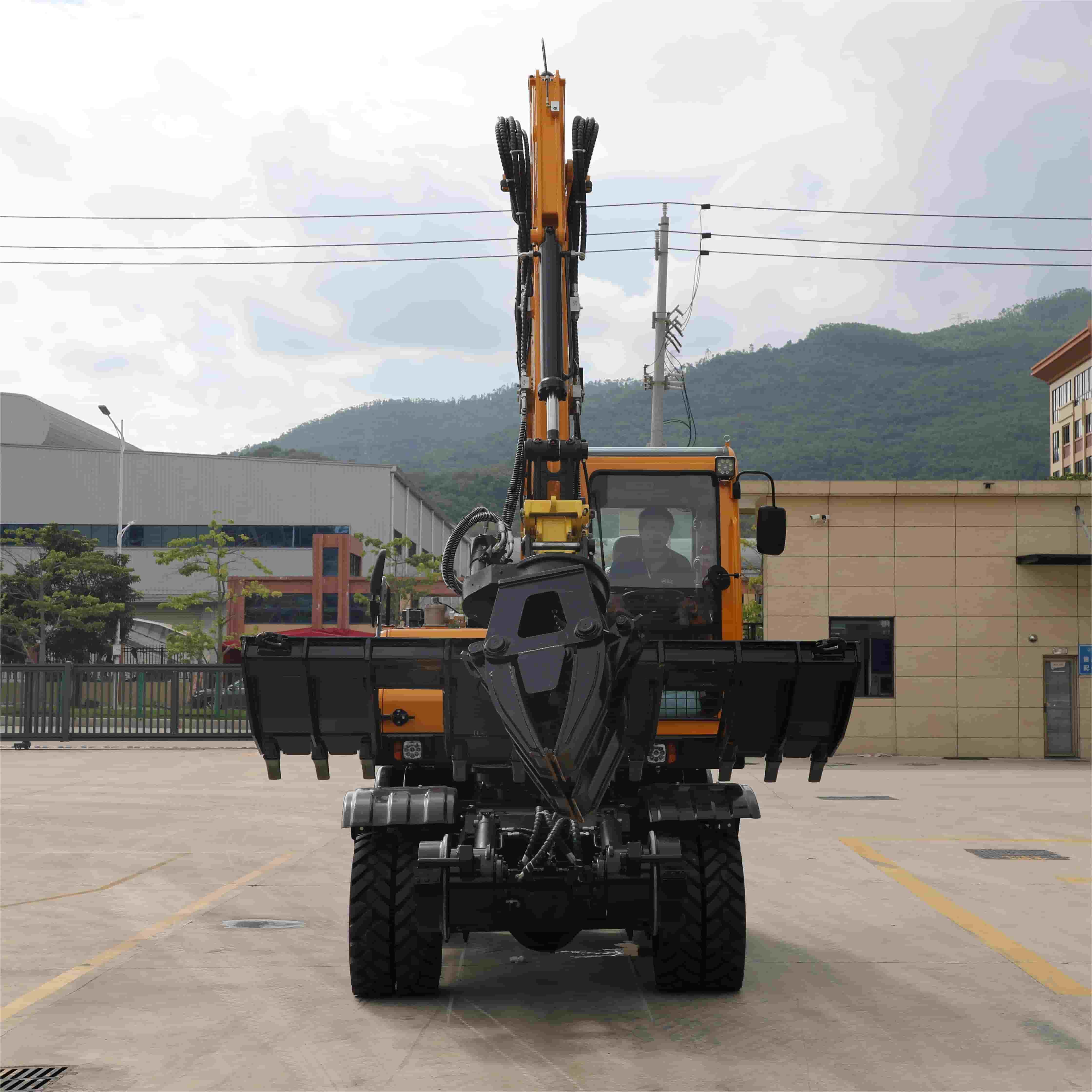

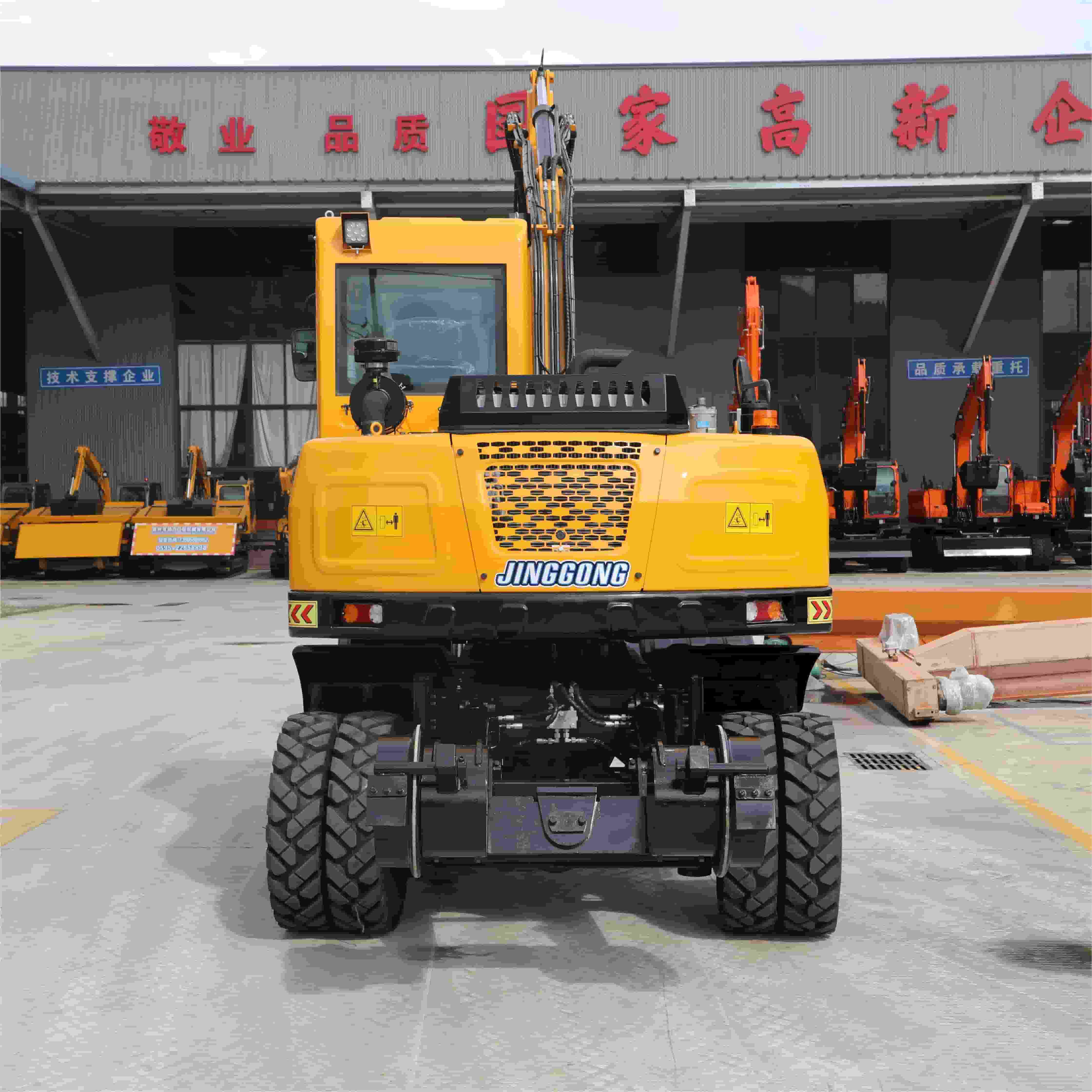

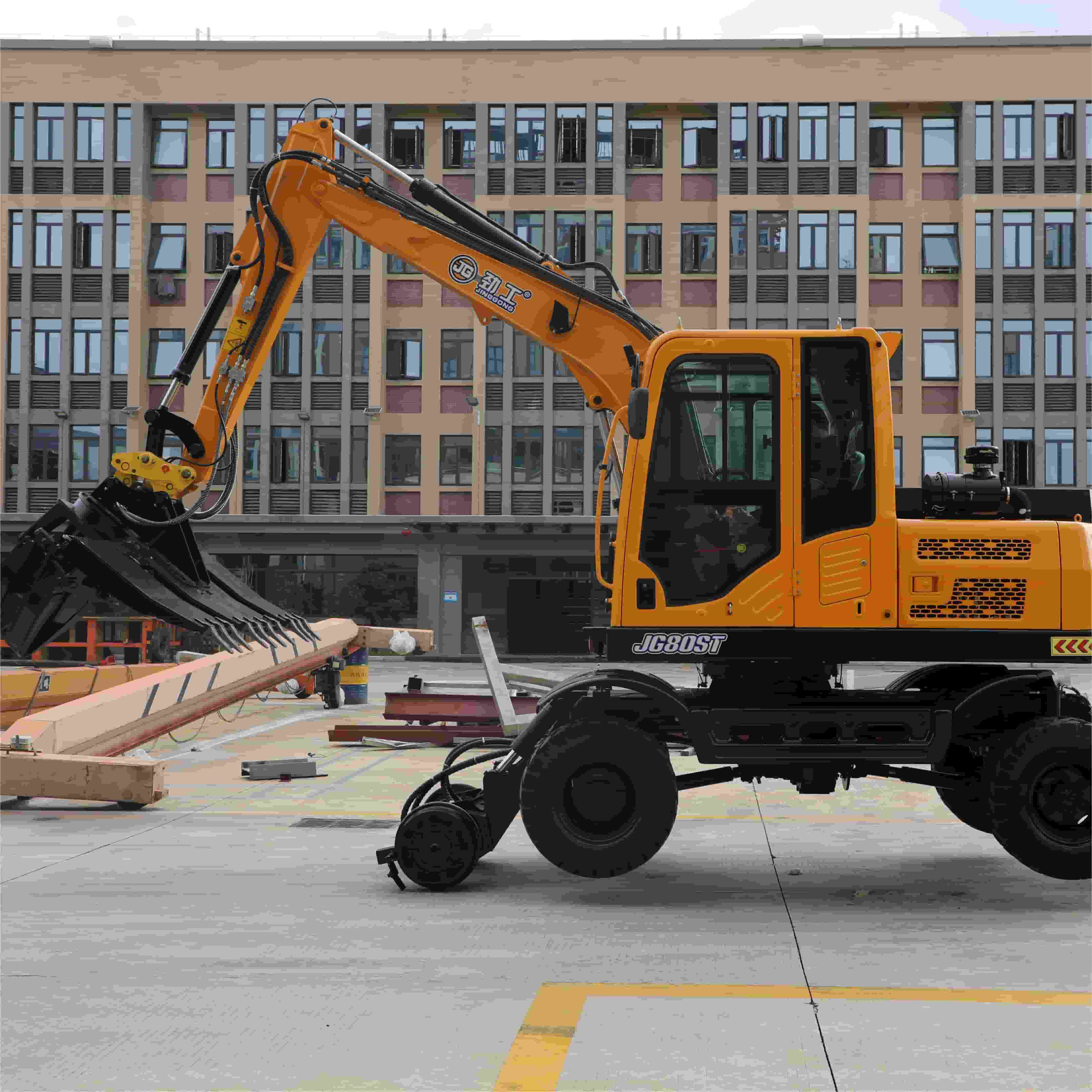

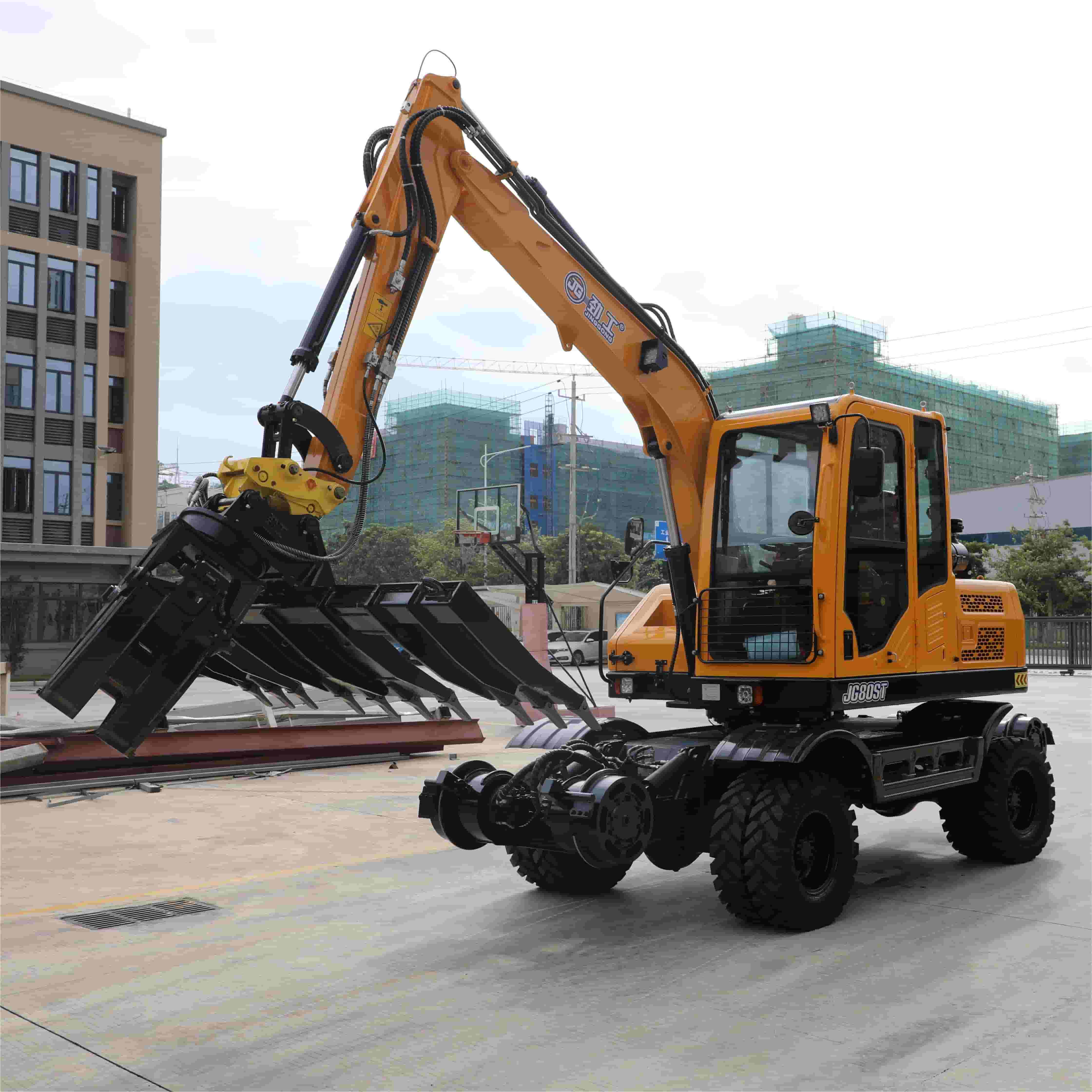

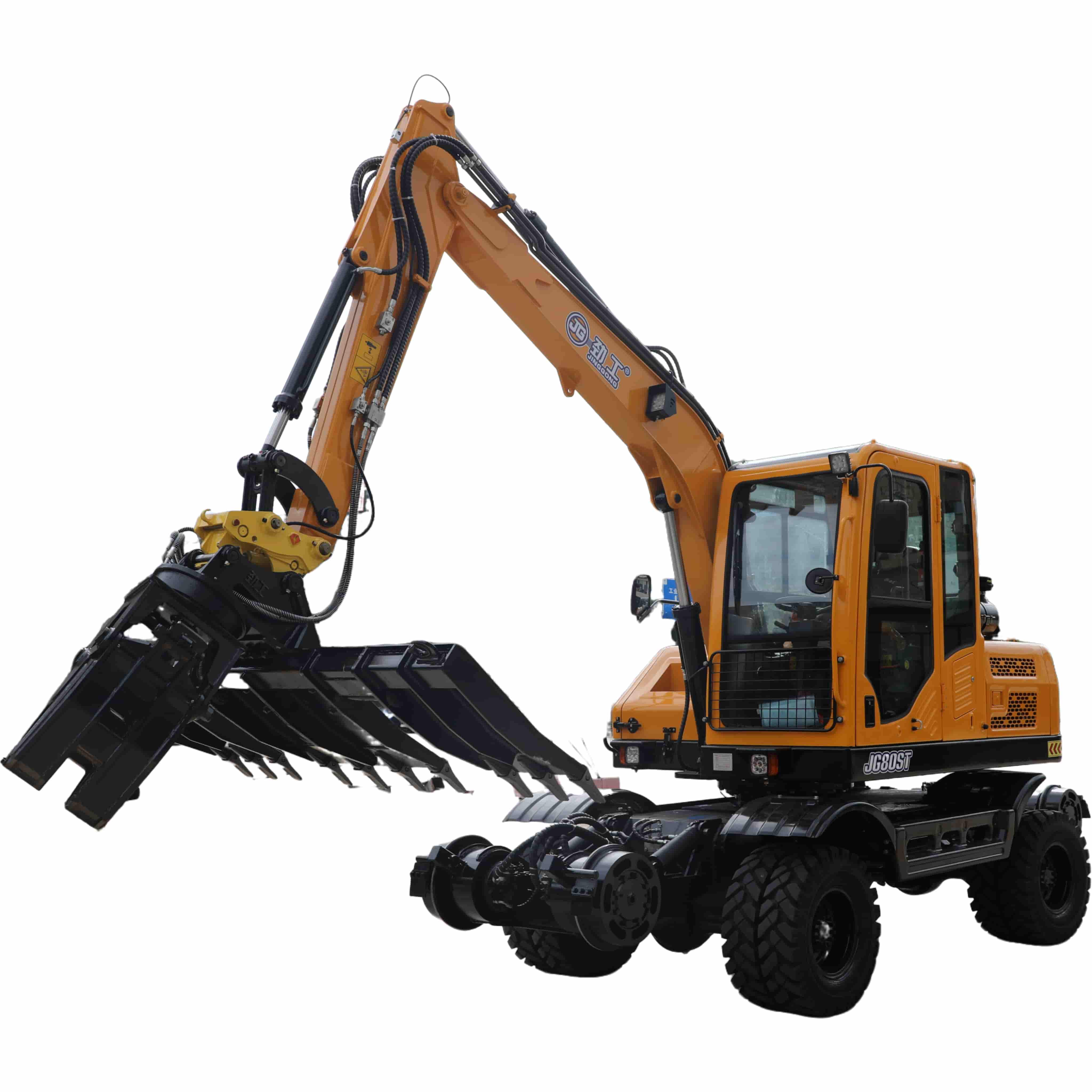

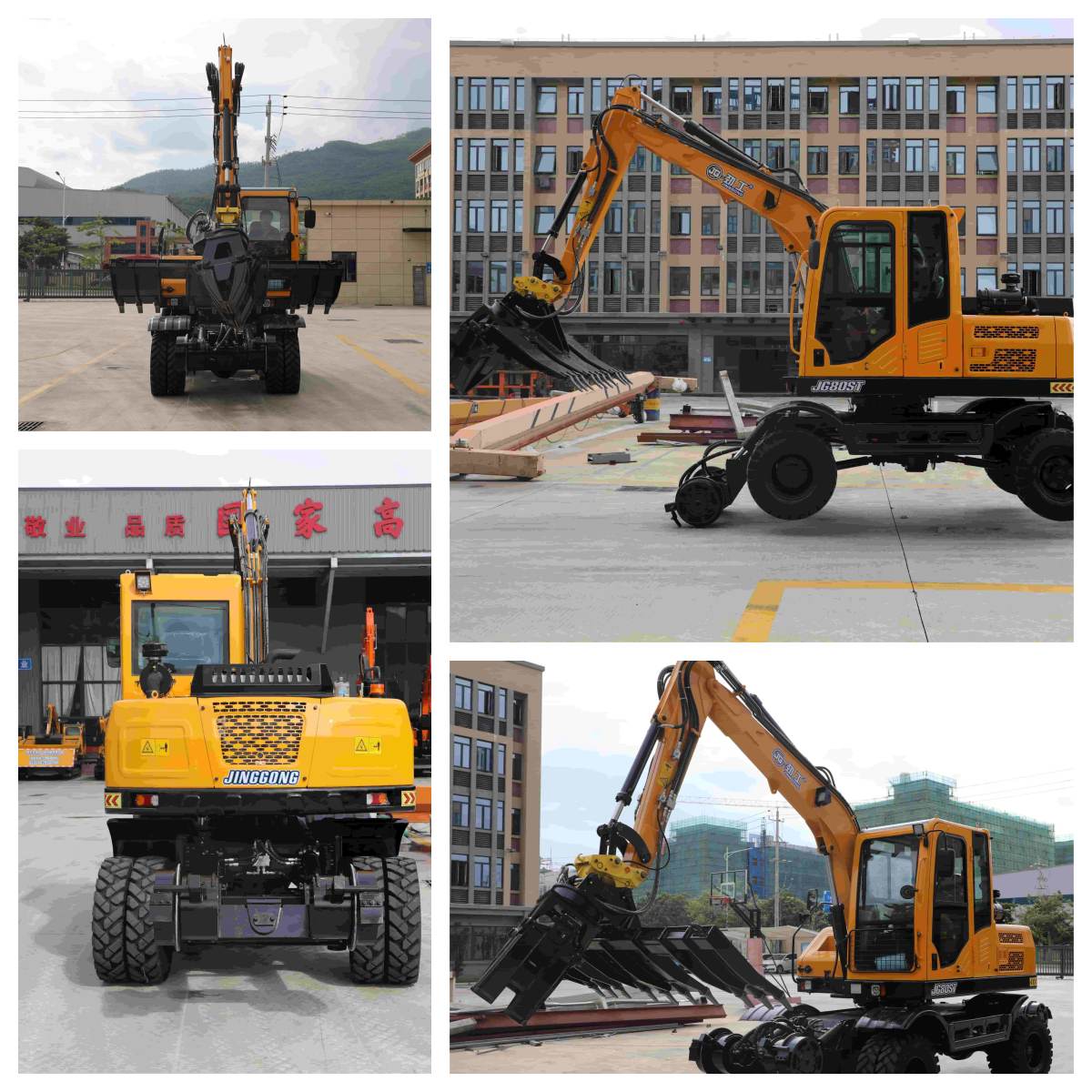

JG80S 8ton wheeled railway excavator railway sleeper replacement excavator
Engineered to revolutionize rail infrastructure upkeep, the JG80S8 Railway Sleeper Replacement Excavator integrates versatility with industrial-grade durability. Its modular design allows rapid adaptation to diverse tasks, from excavating hardened ballast layers to delicately positioning new sleepers without damaging adjacent tracks. The wheeled configuration offers unparalleled mobility for swift transitions between job sites, while corrosion-resistant alloys in critical components extend service life in humid or coastal regions. Advanced load-sensing hydraulics deliver consistent power output even under variable loads, ensuring smooth operations during prolonged shifts. With a focus on sustainability, the machine’s energy-efficient engine reduces emissions without compromising torque, making it a future-ready choice for rail networks committed to eco-conscious maintenance practices.

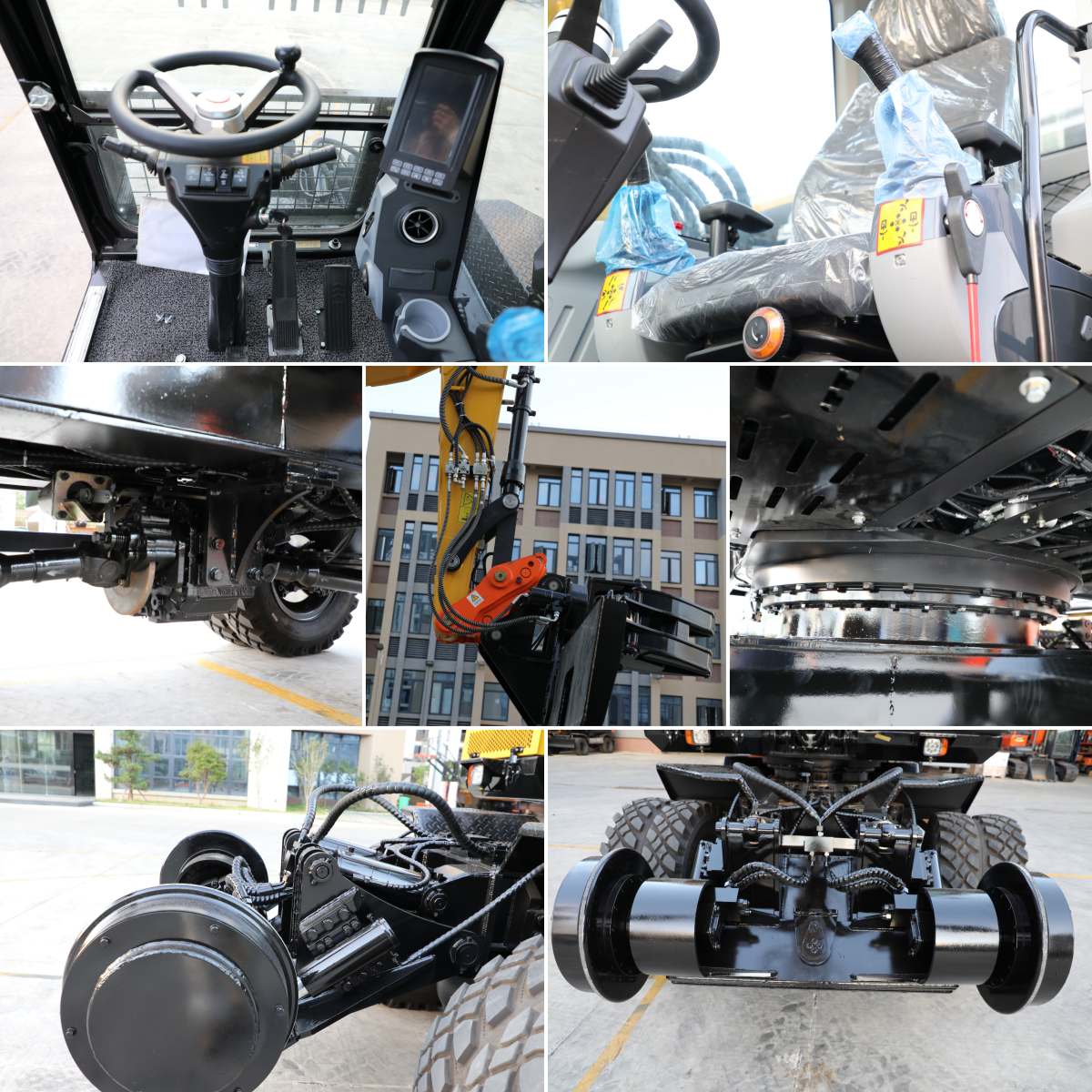

Product Advantages
Technical Specifications
Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
