Custom Solutions For Track Maintance

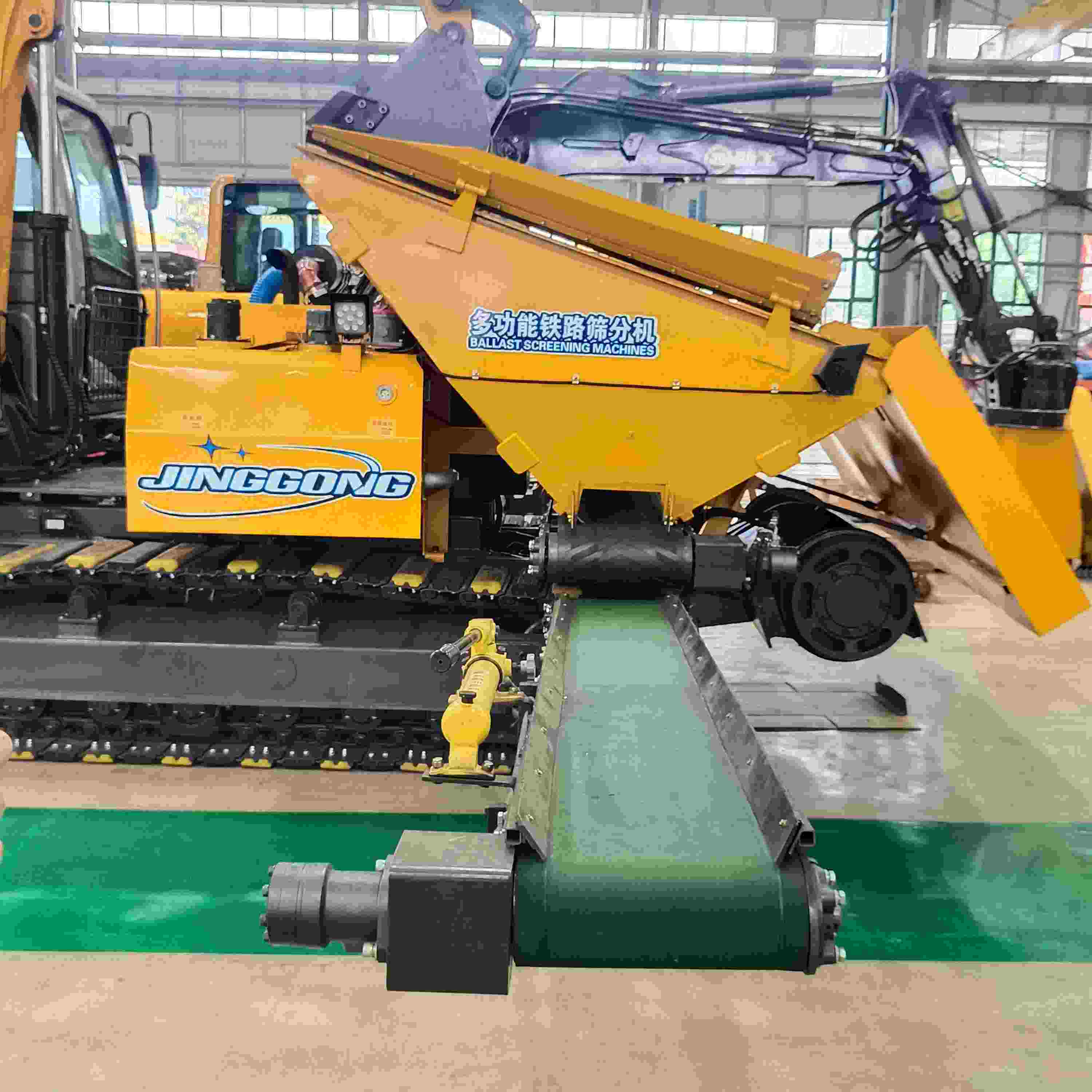

JG80SF efficient railway ballast screening and track cleaning machine for maintenance
The JG80SF Railroad Screen Machine revolutionizes railway track maintenance by offering an advanced solution for efficient ballast cleaning and debris removal. Designed to operate seamlessly on various rail networks, this machine ensures optimal track stability and safety through its robust screening mechanism, which effectively separates contaminants from the ballast bed. By automating the cleaning process, it minimizes manual labor and reduces downtime during routine inspections or upgrades, making it ideal for international railway operators seeking to enhance infrastructure longevity and operational reliability. Its durable construction and adaptable design cater to diverse environments, from urban transit systems to remote freight lines, providing a sustainable approach to maintaining smooth and secure rail operations without compromising on performance.
Item No :
JG80SFOrder(MOQ) :
1Payment :
FOBProduct Origin :
ChinaColor :
yellow/ orange/ blueShipping Port :
xiamenLead Time :
15-45 daysWeight :
8000kgEfficiency，The railway screening machine adopts advanced vibration technology and automatic control system, which can quickly deal with a large number of earth and rock materials and significantly shorten the railway construction and maintenance cycle.Accuracy，Equipped with adjustable screens and smart sensors, the equipment can accurately control the material particle size and output uniform sand and stone aggregates to meet global railway specifications.Reliable，Using high-strength steel and anti-corrosion coatings, the railway screening machine can still operate stably in wet, dusty or changeable terrain, with a mean time between failures of more than 5000 hours.
|
Tech performance and specification |
|
|
Applicable railway gauge |
1435mm Customizable |
|
Angle of rotation |
360° |
|
Machine weight |
8000kg |
|
Engine model |
YUCHAI(Euro IV) |
|
Rated power |
55.8KW |
|
Rated speed |
2200rpm |
|
Hydraulic system working pressure |
22MPa |
|
Hydranlic system flow |
150L/min |
|
Variable piston pump |
72ml/r |
|
Walking speed(High speed/low speed) |
15Km/h/3.5Km/h |
|
Grade climbing ability |
70% |
|
Volume of bucket |
0.5㎡ |
|
Swing overload pressure |
16MPa |
|
Full circle swinging time |
6s |
|
Fuel quantity |
4L/h |
|
Fuel tank capacity |
100L |
|
Hydraulic oil tank capacity |
100L |
|
Note:Product parameters shall prevail in kind,and the right of interpretation and final explanation belongs to the company. |
|
Product Overview

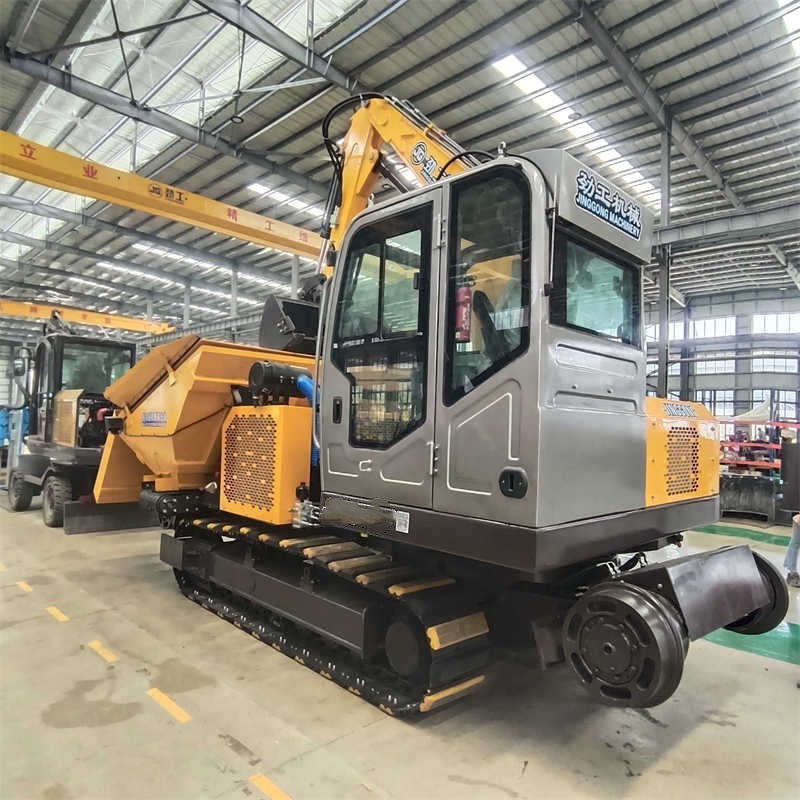

JG80SF Railroad Screen Machine Ballast Cleaning Machine Track Cleaner
Focusing on user-centric innovation, the JG80SF integrates cutting-edge technology to deliver unparalleled ease of use and safety in track cleaning applications. This machine features intelligent screening capabilities that handle complex material separation with precision, ensuring consistent results while mitigating risks associated with manual handling. Operators benefit from its intuitive controls and low-maintenance components, which streamline workflows and reduce training requirements, ultimately boosting productivity across global railway projects. Ideal for foreign trade markets, it supports eco-friendly practices by promoting resource efficiency and reducing environmental impact, positioning it as a forward-thinking investment for companies aiming to modernize their maintenance fleets with reliable, cost-effective solutions.
Product Advantages
Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
Q&A
The JG100SF砟 Screening and Cleaning Machine, with its integrated dual-function system, has completely revolutionized the maintenance work of railway tracks. It can simultaneously remove debris and screen the砟， and is suitable for high-traffic railway line areas. This compact solution is specifically designed for narrow spaces such as tunnels and urban railway networks - it can reduce the amount of manual labor and lower operational downtime. It is equipped with standard-compliant engines and components， capable of withstanding extreme environmental conditions， and the CE certification ensures its smooth deployment in global projects ranging from Southeast Asia to Europe.
Read More
The JG80LT rotary screening excavator is a revolutionary 8-ton solution, specifically designed for seamless classification of railway ballast and processing of industrial materials. Equipped with advanced rotary screening buckets and adjustable screen technology, it can separate debris and aggregates in real time during the excavation process, thereby enhancing the efficiency of the work site and significantly reducing the need for manual labor. This equipment is suitable for narrow railway environments and small quarries, and its compact structure ensures flexibility and maneuverability even on steep slopes, reducing operational downtime. It has global certifications, including CE emission standards, and low emission performance, providing a sustainable and cost-effective investment option for international projects - it can reduce fuel consumption.
Read More
JG100SF 10-ton railway screening machine.Professional track cleaning solution! The integrated efficient screening system can quickly remove dirt and gravel impurities from the road bed, and the treatment capacity is up to 300m³/h. The modular design ADAPTS to the global standard gauge, and the automatic operation reduces the labor investment by 70%, which significantly improves the drainage and stability of the line. It is suitable for maintenance of heavy-duty railway, subway and high-speed line. The corrosion-resistant steel structure ensures the service life of more than 10 years.
Read More
The JG80LT screening bucket is a professional excavator attachment engineered for railway track maintenance and bulk material screening tasks. It mainly undertakes railway ballast screening, gravel separation, debris removal, granular material classification and track bed cleaning works. Fabricated from premium high-strength wear-resistant steel, this screening bucket delivers outstanding structural toughness to endure long-duration, heavy-load operation along railway lines under rough outdoor working conditions. The rotary mesh screening design efficiently sifts qualified ballast while filtering out soil, broken stones and sundries, cutting manual sorting workload greatly. It elevates railway maintenance progress, optimizes ballast bed construction quality, and fits perfectly with standard railway maintenance excavators with customizable mounting adapters available.
Read More
