Custom Solutions For Track Maintance

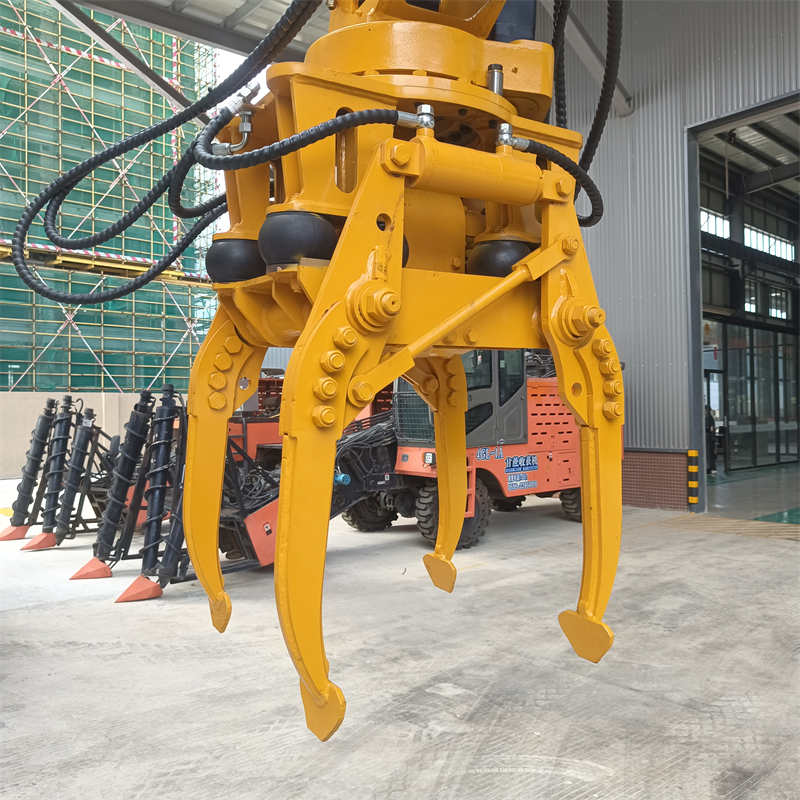

JG Single Tamping Ballast Head For Railway Excavators
The Single Tamping Ballast Head For Railway Excavators is a core operation accessory specifically designed to enhance the efficiency and accuracy of railway track bed maintenance. This tamping head is integrated at the front end of a track-specific excavator. With its high-strength alloy steel forged core tamping arm and precisely designed tamping head, it can precisely insert into the sleeper box area, apply deep vibration and controllable downward pressure to the loose ballast, efficiently achieve the compact filling and uniform compaction of ballast at the sleeper bottom and shoulder, and quickly restore the support stiffness of the track bed and the geometric stability of the track.
Item No :
JG-LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
black or yellowShipping Port :
XiamenLead Time :
15-45daysWeight :
550kg
|
Model |
JGKT |
|
Suitable for railway gauge |
Applicable railway gauge 1067/1435/1600mm, adjustable by sliding left and right |
|
Vibration frequency |
HZ |
|
Tamping depth |
mm |
|
Working efficiency |
≥120pcs/h |
|
Length |
1050mm |
|
Width |
720mm |
|
Height |
1400mm |
|
Weight (approx) |
1110kg |
|
Note: The product parameters are subject to the actual item. The company reserves the right of interpretation and the final right of interpretation |
|

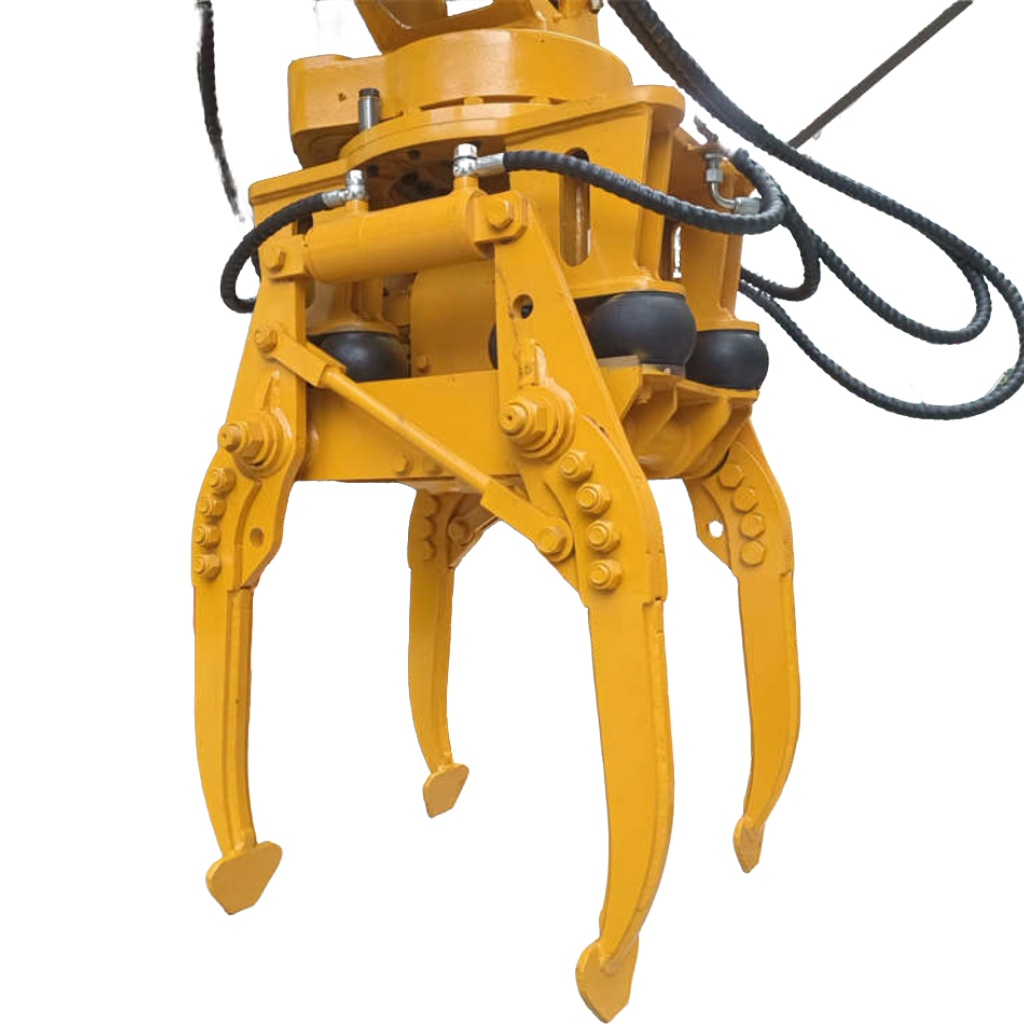

Product Overview
JG Single Tamping Ballast Head For Railway Excavators
Single Tamping Ballast Head For Railway Excavators compact structure fully adapts to the narrow working space within the track limit, especially suitable for detailed maintenance in complex sections such as station throat areas and turnout groups; the optimized anti-shock design can effectively resist the wear caused by the sharp edges of the ballast, ensuring long-term reliable operation in environments with high wearability such as granite and basalt. The modular quick-change interface supports seamless compatibility with mainstream railway excavators, enabling rapid switching of excavation, leveling, and tamping functions, significantly reducing equipment scheduling time; the intelligent amplitude adjustment system can dynamically optimize operation parameters according to different ballast gradations and tamping requirements, minimizing disturbance to the existing track bed structure and ensuring the smoothness and uniformity of the track after tamping. This single-head tamping head, with its precise, flexible, and low-interference characteristics, has become an indispensable efficient solution for modern railway daily maintenance and precise adjustment of key sections.

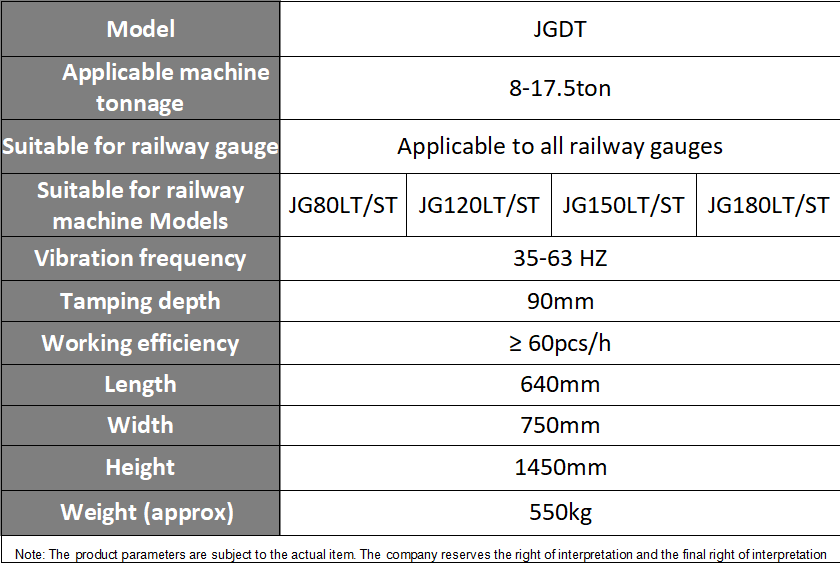

Technical Specifications
Customizable
In the complex scene of railway construction and maintenance, standardized assistive devices are often difficult to meet diverse needs. We offer full-process customized accessory solutions, from breaking hammers and hydraulic rammers to rail tie installers. Each product can be redesigned according to your equipment model, operating environment and special functional requirements.

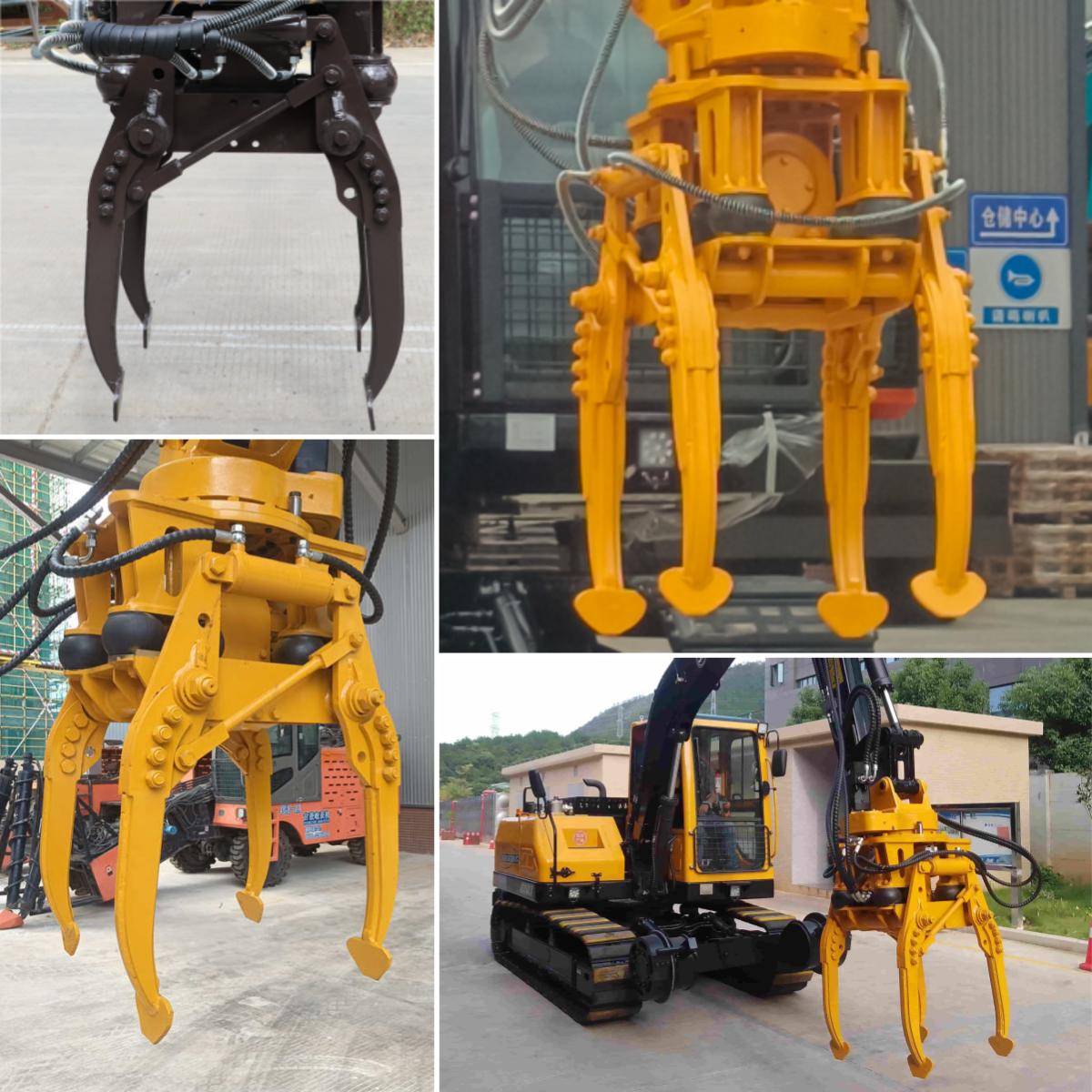

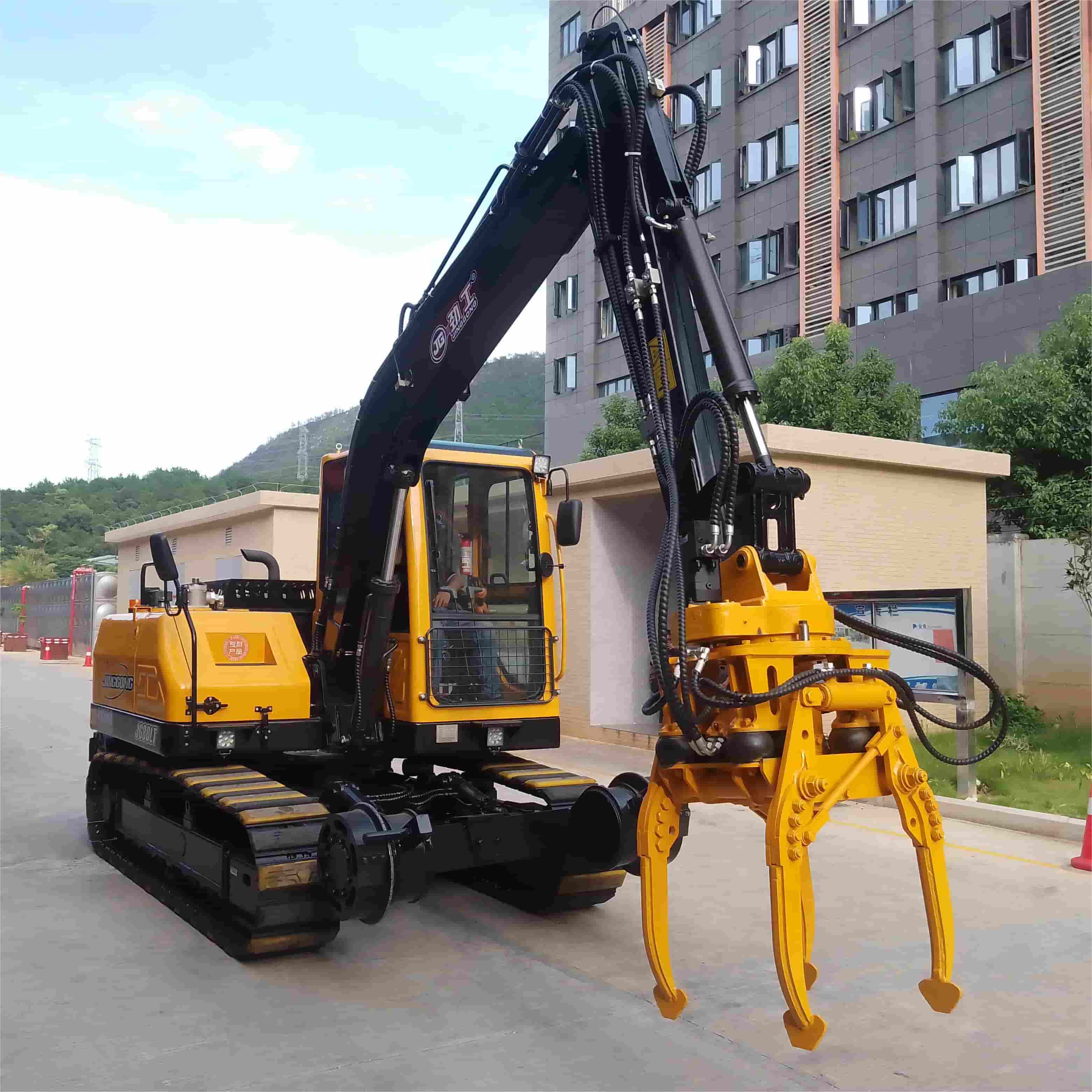

Application Scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
